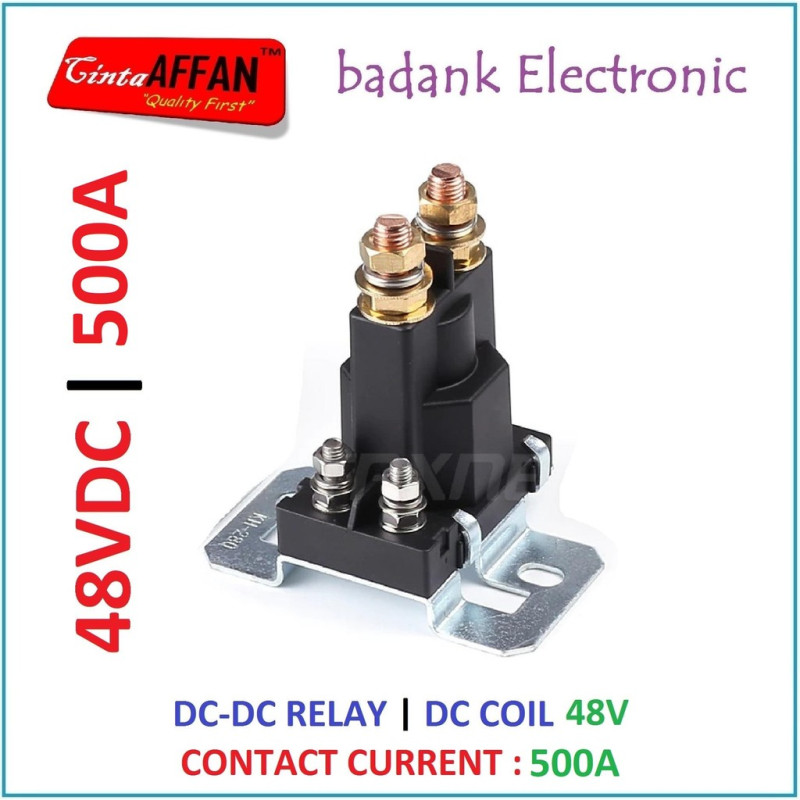

COIL 48V DC-DC Relay 500A Automotive Heavy Duty High Current Starting

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

DC-DC RELAY Coil / Control Voltage : 48V

STARTING/SURGE LOAD (5ms):
---Max Contact Current : 500A (@12V Contact Voltage)
---Max Contact Load : 6000W

CONTINOUS LOAD :
---Max Contact Current : 200A (@12V Contact Voltage)
---Max Contact Load : 2400W

Note: The contact current capacity will reduced alongside with the increase of the contact voltage.

@12VDC Contact Voltage --> Max Contact Surge Current is 500A
@24VDC Contact Voltage --> Max Contact Surge Current is 250A
@48VDC Contact Voltage --> Max Contact Surge Current is 125A
@100VDC Contact Voltage --> Max Contact Surge Current is 60A
@200VDC Contact Voltage --> Max Contact Surge Current is 30A

FEATURES:
Durable amp; Firm amp; Stable
Contact Load: High Power
Sphere of application: solar inverter, construction vehicles, cars, and other large vehicles

SPECIFICATION:

COIL SIDE:
---Nominal Voltage : 48V DC
---Pickup Voltage : 32V DC
---Dropout Voltage: 4.8V DC
---Maximum Voltage : 62V DC
---Current Consumption : 0.2A / 9.6W (Max)
---Coil Resistant : 316 Ohms

CONTACT SIDE:
---Contact material : AgSn0_27In_20_33 Contact form : 1H(1A)
---Contact Ratings : 500A
---Contact Resistance : 100M Max at 6VDC 1 A
---Max Switching Current : 500A (Surge @12V Contact Voltage)
---Max Switching Current : 200A (Continuous @12V Contact Voltage)
---Max Switching Power : 6000W (Surge Power)
---Max Switching Power : 2400W (Continuous Power)
---Life Expectancy Electrical : 100,000 Operations (at 30 Operations/minute)
---Life Expectancy Mechanic : 10,000,000 Operations Size(L*W*H): 7.2cm x 5.5cm x 8.5cm
