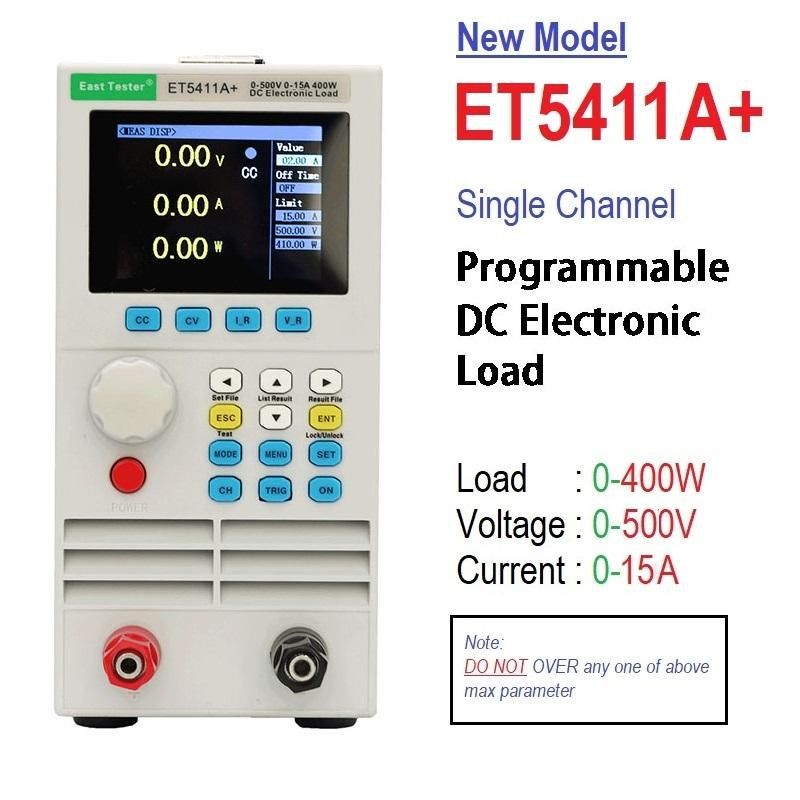

400W ET5411A Programmable DC Electronic Load 500V 1x15A Battery Tester

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

DC Electronic Load

ET5411A+
---Single Channel
---Max Load : 400W
---Voltage Setting : 0-500V
---Current Setting : 0-15A

Download PC Software :


ET54 series single/double channel programmable dc electronic load, USES the high performance chip, high speed, high precision design, provide 1mV,1mA resolution, superior performance, can be widely applied to the charger, switching power supply, linear power supply, production test of all kinds of batteries and other industries, scientific research institutions such as the test research and development.

---

===

SPECIFICATION

Brand : East Tester
Model : ET5411A+

Channel No. : Single channel

Rated input :
---power : 400W
---input voltage : 0-500V
---Input current : 0-15A

Constant voltage :
---range : 0.1~19.999V or 0.1~500.00V
---Resolution : 1mV or 10mV
---accuracy : +/-0.05%+0.02%FS)

Constant current :
---range : 0~3.000A | 0~15.00A
---Resolution : 1mA or 10mA
---accuracy : +/-(0.05%+0.05%FS)

Constant resistance :
---range : 0~400W
---Resolution : 16bit
---accuracy : +/-(0.1% + 0.8%FS)
Measurement range : 10mW

Resolution :
---Resolution : +(0.1%+0.5%FS)
---Accuracy : CC, CV
---Mode : 1ms~60s ; Resolution Time : 1ms

Dynamic test function :
---T1 amp;T2 : 0.1%+ 1ms
---Accuracy : 0.000~ 0.3A/μs(Current 0~3.000A)
---Upward/downward slope : 0.000~1.5A/μs(Current 3. 000~15.00A)
---Discharge mode : CC, CR

Battery test function :
---Maximum Discharge Capacity : 9999Ah
---Resolution : 1mA, ,10mA , 10mQ , 100mQ

---

===
