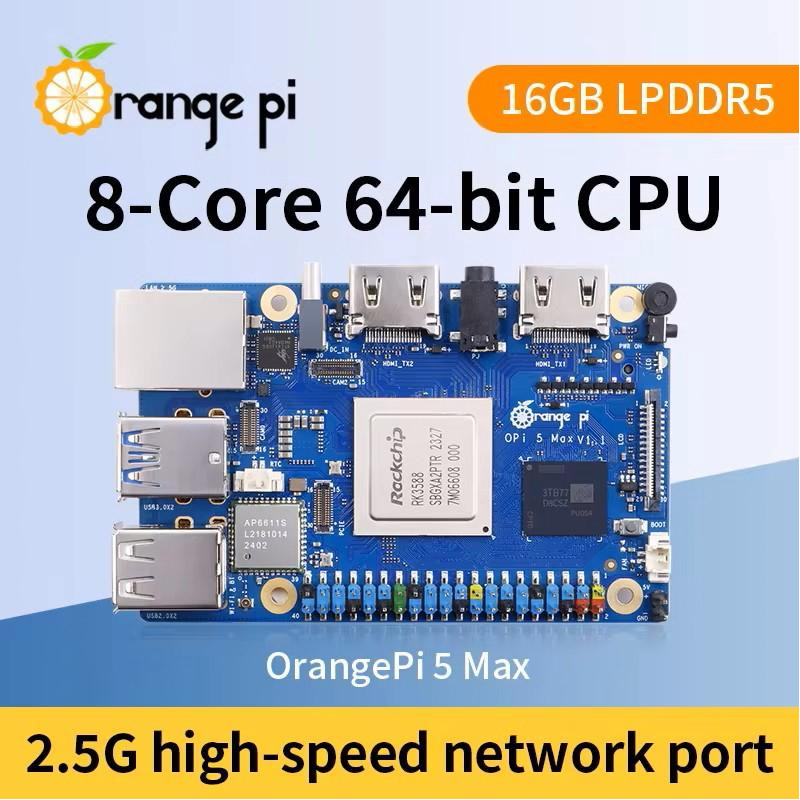

Orange Pi 5 MAX (Embedded 6 TOPS NPU) - 16GB RAM

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

Orange Pi 5 MAX, RAM 16GB LPDDR5

SUPPORTED OS :
- Orange Pi OS (OH)
- OpenWRT
- Orange Pi OS (Arch)
- Orange Pi OS (Droid)
- Ubuntu
- Debian
- Android

Order Metal Case :
https://www.tokopedia.com/badank/metal-case-for-orange-pi-5-pro-with-cooling-fan-external-antenna-and-heatsink

Order Adaptor :
https://www.tokopedia.com/badank/caff-5v-5a-type-c-adaptor-for-raspberry-pi-5-orange-pi-5-pro

Order eMMC Module :
32GB : https://www.tokopedia.com/badank/orange-pi-emmc-module-32gb
64GB : https://www.tokopedia.com/badank/orange-pi-emmc-module-64gb
256GB : https://www.tokopedia.com/badank/orange-pi-emmc-module-256gb

Order SSD NVME Gen3:
256GB : https://www.tokopedia.com/badank/256gb-ssd-nvme-m-2-m-key-pcie-gen3x4-form-factor-2280
512GB : https://www.tokopedia.com/badank/512gb-ssd-nvme-m-2-m-key-pcie-gen3x4-form-factor-2280
1TB : https://www.tokopedia.com/badank/1tb-ssd-nvme-m-2-m-key-pcie-gen3x4-form-factor-2280
2TB : https://www.tokopedia.com/badank/2tb-ssd-nvme-m-2-m-key-pcie-gen3x4-form-factor-2280

---

HARDWARE SPEC:

Master Chip : Rockchip RK3588 (8nm LP process)
CPU :
--- 8-core 64-bit processor
--- 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor
--- Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz
GPU :
--- Integrated ARM Mali-G610
--- Built-in 3D GPU
--- Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2.
NPU : Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU : RK806-1
RAM : LPDDR5 496PIN：4GB、8GB、16GB optional
Memory :
--- eMMC Flash Sockets（default）
--- Onboard eMMC（customizable）Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional
--- QSPI Nor FLASH: 16MB
--- MicroSD card slot
--- M.2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)
USB : 2*USB3.0；2*USB2.0；
Video :
--- 2* HDMI 2.1, up to 8k@60FPS
--- 1* MIPI DSI TX 4 Lane
Camera :
--- 2* MIPI CSI 4 Lane
--- 1* MIPI D-PHY RX 4 Lane
Audio : CODEC：ES8388
--- 1* Audio 3.5mm jack with mic
--- 1*MIC In
--- 1*HDMI 2.1 eARC
Ethernet : 1*PCIe 2.5G LAN（RTL8125BG )
Wi-Fi+BT Module : Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611
Wi-Fi interface : SDIO3.0
BT interface : UART/PCM
Expansion Port : Dual-row pin: 2.54mm 40Pin Supports DC 5V and 3.3V power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button : 1* BOOT key, 1 * On/Off key
Power Source : Supports Type-C power supply, 5V @ 5A
LED : RGB LED Side Illumination
FAN : 5V 2PIN 1.25mm socket
RTC : 3V 2PIN 1.25mm socket
Debugging : Debug serial UART included in 40PIN expansion port
Supported OS : Orangepi OS（Droid）、Orangepi OS（Arch）、Orangepi OS（OH）、Ubuntu、Debian、Android12

---
