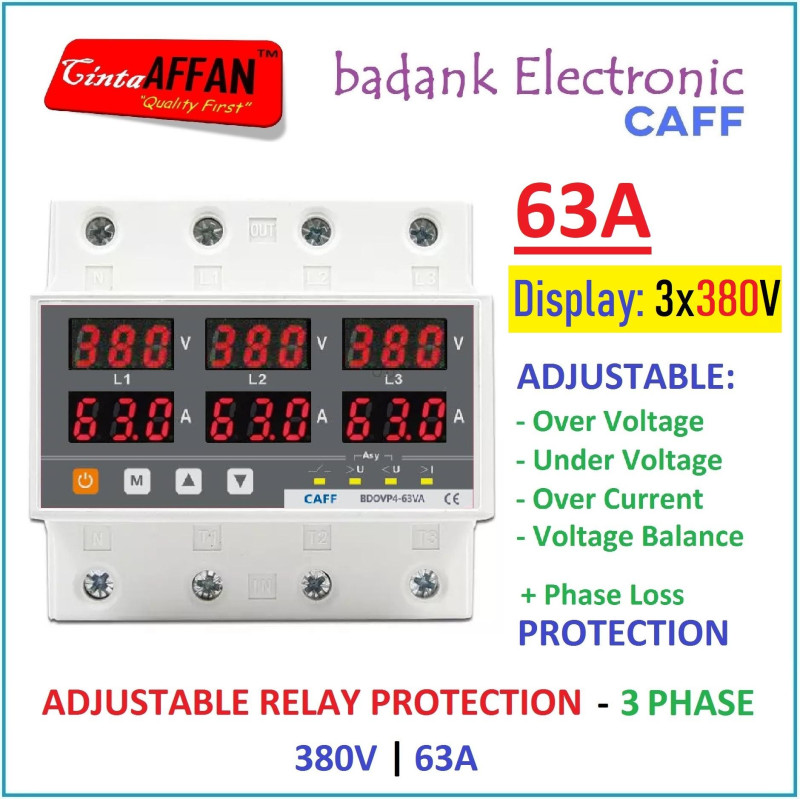

CAFF Relay Protector 3-Phase 4-Wire 63A VA Monitor 380V (L-L) Display

Name: CAFF Relay Protector 3-Phase 4-Wire 63A VA Monitor 380V (L-L) Display
Brand: badank Electronic
SKU: 6918985843
Price: 620800 IDR
Availability: InStock

Rp640.000

Rp620.800 Hemat 3%

Termasuk pajak

Kebijakan Keamanan

Kami melindungi informasi pribadi Anda dengan langkah keamanan yang tepat untuk mencegah akses tanpa izin, penyalahgunaan, atau pengungkapan.

Kebijakan Pengiriman

Pesanan diproses dan dikirim secepat mungkin. Waktu pengiriman dapat berbeda tergantung tujuan, kurir, dan ketersediaan produk.

Kebijakan Pengembalian

Jika Anda menerima barang rusak, cacat, atau tidak sesuai, silakan hubungi kami segera. Pengembalian atau penukaran mengikuti ketentuan dan batas waktu yang berlaku.

Keterangan
Detail produk

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

CAFF

3-PHASE VOLTAGE, CURRENT, UNBALANCE, PHASE LOSS PROTECTOR

VOLTAGE DISPLAY : 3x380V (L-L Voltage)
MAX CURRENT : 63A

Function:
1. Under voltage protection (adjustable)
2. Over voltage protection (adjustable)
3. Over current protection (adjustable)
4. Voltage balance protection (adjustable)
5. Phase Loss protection
6. Active time and reconnect time (adjustable)
7. Voltmeter
8. Ammeter

PRODUCT PARAMETERS:
Brand : CAFF
Model number: BDOVP4-63VA
Rated Input Voltage (L-L Voltage) : 380VAC 50/60Hz
Operating Voltage (L-L Voltage) : 240-520VAC 50/60Hz
Power-ON Delay time: 1-500s (default: 10s)
Over-voltage protection value (L-L Voltage) : 395V~520V (default:460V)
Over-voltage recovery value (L-L Voltage) : 390V~515V (default:455V)
Under-voltage protection value (L-L Voltage) : 240V~365V (default: 300V)
Under-voltage recovery value (L-L Voltage) : 245V~370V (default: 305V)
Three phase voltage error value : -9.5% ~ 9.5% (default: 0)
Three phase voltage unbalance value : 20V~99V (default:40V)
Three phase voltage unbalance recovery value : 15V~94V (default:35V)
Three phase voltage unbalance protection switch : OFF/ON (default: OFF)
Over-Current protection value (L1, L2, L3) : 1-63A (default 30A)
Recovery delay time : 1-500s (default : 30s) Action time : 0.1-30s (default : 1s)
Continuous over current faults times : 1-20 times (default: OFF)
Phase-loss protection : ON
Electrical & Mechanical life : > 100000 cycles
Dimension : 91 x 90 x 66mm
Wiring :
--- INPUT : BOTTOM side
--- OUTPUT : UPPER side
