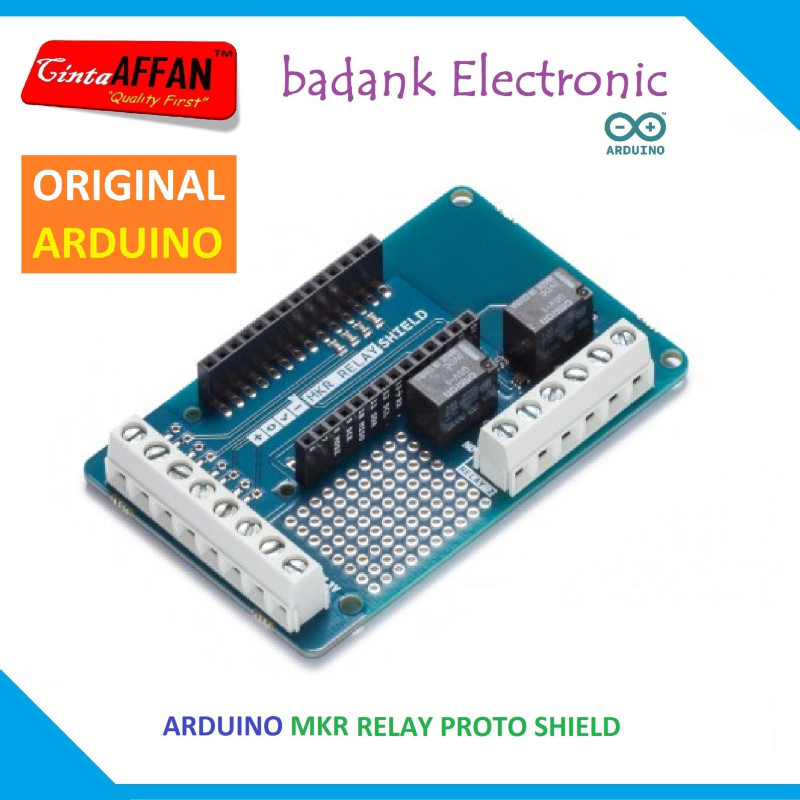

ARDUINO MKR RELAY PROTO SHIELD Made In ITALY

Name: ARDUINO MKR RELAY PROTO SHIELD Made In ITALY
Brand: badank Electronic
SKU: 437132594
Price: 373450 IDR
Availability: InStock

Rp385.000

Rp373.450 Hemat 3%

Termasuk pajak

Kebijakan Keamanan

Kami melindungi informasi pribadi Anda dengan langkah keamanan yang tepat untuk mencegah akses tanpa izin, penyalahgunaan, atau pengungkapan.

Kebijakan Pengiriman

Pesanan diproses dan dikirim secepat mungkin. Waktu pengiriman dapat berbeda tergantung tujuan, kurir, dan ketersediaan produk.

Kebijakan Pengembalian

Jika Anda menerima barang rusak, cacat, atau tidak sesuai, silakan hubungi kami segera. Pengembalian atau penukaran mengikuti ketentuan dan batas waktu yang berlaku.

Keterangan
Detail produk

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

ORIGINAL ARDUINO - MADE IN ITALY

ARDUINO MKR RELAY PROTO SHIELD

The MKR Relay Proto Shield allows you to easily command relays with your MKR board. The shield provides two on board relays and a small prototyping area if you need to add some other component to your project.

The MKR Relay Protoshield allows you to easily add relays to your MKR board based project. The shield provides two relays (Datasheet) called RELAY1 and RELAY2 commanded by pin 1 and pin 2 respectively.
The shield also provides an easy connection by means of screw terminal blocks to A1 to A4 analog inputs, I2C and supply voltages :
--Operating voltage 3.3V (supplied from the host board)
--Two relays with NO, COM and NC connections
--Works with battery powered board
--8 positions screw terminal blocks for easy connections with A1 to A4 Analog input, SCL SDA for I2C, GND and 3.3V output
--6 positions screw terminal blocks (NO, COM, NC for each relay)
--Carry current: 2 A
--Max. operating voltage: 24 VAC, 50 VDC
--Max. operating current: 1 A
--Max. switching capacity: 62.50 VA, 30W
--Proto area
