IAMMETER CLOUD 3-Phase WIFI Bidirectional Energy Meter 3-Sensor CT 1000A

Name: IAMMETER CLOUD 3-Phase WIFI Bidirectional Energy Meter 3-Sensor CT 1000A
Brand: badank Electronic
SKU: 11269678735
Price: 7274030 IDR
Availability: InStock

Rp7.499.000

Rp7.274.030 Hemat 3%

Termasuk pajak

Kebijakan Keamanan

Kami melindungi informasi pribadi Anda dengan langkah keamanan yang tepat untuk mencegah akses tanpa izin, penyalahgunaan, atau pengungkapan.

Kebijakan Pengiriman

Pesanan diproses dan dikirim secepat mungkin. Waktu pengiriman dapat berbeda tergantung tujuan, kurir, dan ketersediaan produk.

Kebijakan Pengembalian

Jika Anda menerima barang rusak, cacat, atau tidak sesuai, silakan hubungi kami segera. Pengembalian atau penukaran mengikuti ketentuan dan batas waktu yang berlaku.

Keterangan
Detail produk

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

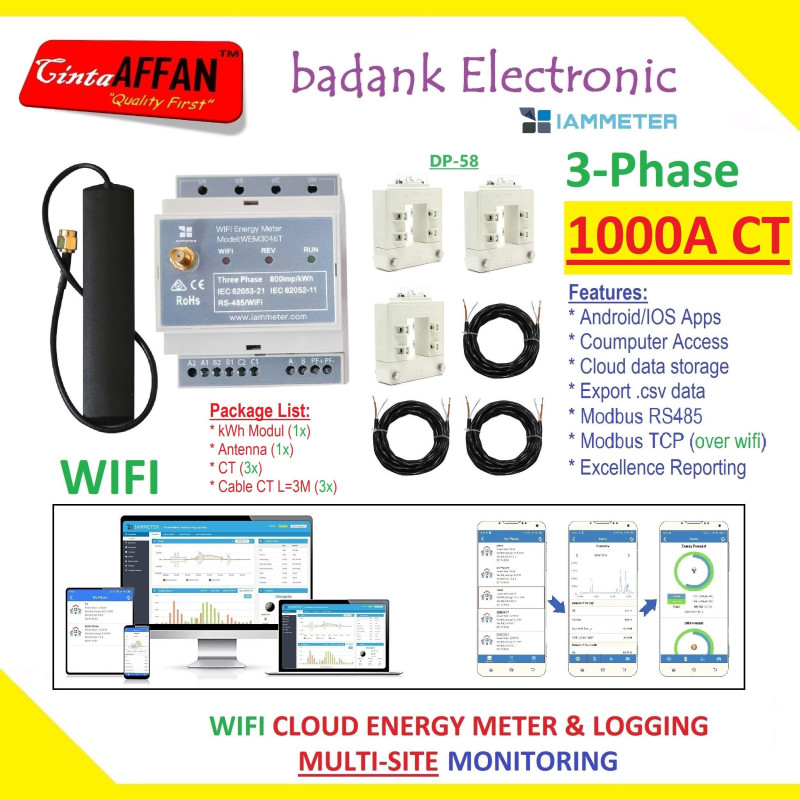

ENERGY METER CLOUD MONITORING (3-SENSOR CT 1000A)

INTERFACE :
---via ANDROID/IOS, APPS : IAMMETER
---via Laptop/computer (web browser)

WEM3046T (3-sensor CT 1000A) :
---Aplikasi untuk 1-titik pengukuran listrik 3-fasa 380V (4-wire / R, S, T, N)
---Aplikasi untuk 3-titik pengukuran listrik 1-fasa 220V (2-wire / L, N)

Harga SUDAH TERMASUK cloud storage fee lifetime period.

KEY FEATURES
---Real-time energy monitoring via your Wi-Fi network
---Simply one-key Wi-Fi setup to connect to your Wi-Fi network
---Enterprise-class performance, suitable for domestic, commercial, industrial use and solar system
---Cloud service and Mobile app is available
---Support local monitoring via LAN or uploading the data to your specified server
---4-pole DIN-rail mounting fits neatly in the meter box

GENERAL SPECIFICATION
Standard package :
---1. Wi-Fi Energy Meter (WEM3046T) (x1)
---2. Split-core Current Transformer 1000A (x3), CT perforation 50x80mm (DP-58)
---3. Cable for CT L=3M (x3)
---3. 2.4G Wi-Fi Antenna (x1)
Power Supply : Built-in universal power supply
Communication : Built-in Wi-Fi
Antenna : External 2.4G antenna with SMA male
Reporting interval : 1-5 minutes interval, typically 1 minute
Report contents : Active Energy (Forward and Reverse), Active Power, Voltage, Current, Frequency
Configuration :
---1. Wi-Fi access point and webpage for setting SSID and password
---2. Mobile App for setting SSID and password
Monitoring Scenarios :
---1. Monitor on Iammeter Cloud
---2. Monitor locally on your PC via WLAN (Http get interface)
---3. Integrate with third party server, such as your own server, PVoutput and HomeAssistant (TCP/SSL interface)

ELECTRICAL CHARACTERISTIC
Input Voltage : 80-277 V AC (Phase Voltage), 140-480 V AC (Line Voltage)
Measurement Accuracy : 1.0%, Class-1 (Voltage, Current, Active Power, Energy)

Typical power consumption : 2W(220VAC input)
