HA12 Bluetooth Battery Equalizer Balancer VRLA Lead Acid Lithium-Ion LiFePO4

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

DAPAT DIGUNAKAN UNTUK SEMUA JENIS BATTERY
(dengan cell-voltage <18V)

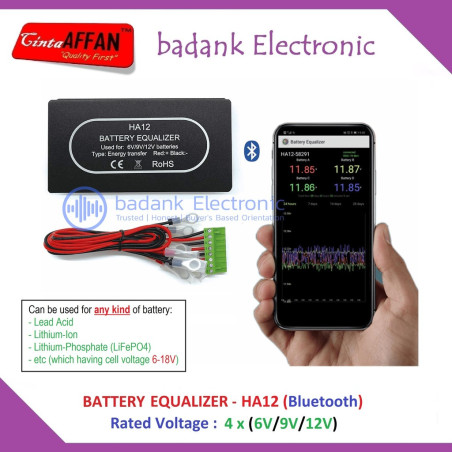

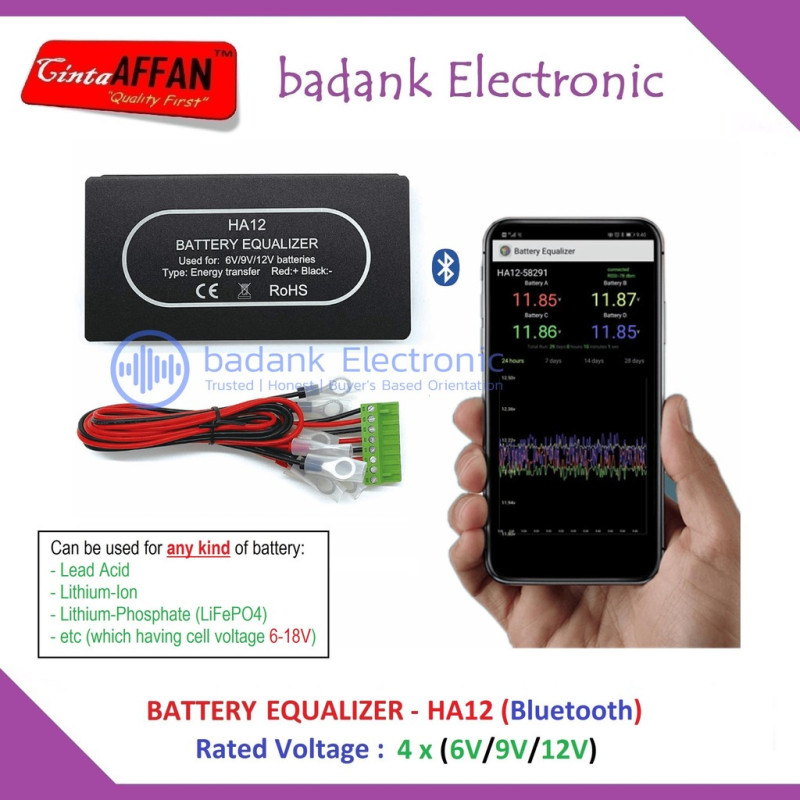

Battery Equalizer HA12 - with BLUETOOTH feature (android apps)

INSTALLATION
Connect it as the following order:
1. Red cable connect positive (+) pole. Black cable connect negative (-) pole
2. Connect the batteries as the pictures.
3. You can connect all (+) pole firstly, and then (-) pole to avoid short circuits.
4. AVOID SHORT-CIRCUIT, it can broke the balancer.

HA12 battery equalizer is for balancing 4*12V battery bank. Compatible with lead acid battery, lifepo4 battery, NiMH Battery, etc. It start work when there is 20mv voltage difference between batteries.
HA12 battery equalizer can be used for 48V, 96V and any other N*48V battery system.
1 piece for 48V system (4x12V);
2 pieces for 96V system (8x12V);
... and so on

FEATURES:
--For 4*（6V/9V/12V) Batteries
--With Bluetooth
--Users can check battery voltage date through mobile app
--Battery protector, extend battery lifetime
--Active energy transfer equalizer
--Compatible with all batteries, No battery type limited
--Fast balance speed and low consumption
--No need of external power supply
--Free maintenance;
--Reverse polarity protection, safe and reliable.
--IP67, waterproof and moisture-proof;
--Small size, easy installation.
--CE, RoHS certification

SPEC:
Model : HA12
--Battery Normal Voltage : 4*(6V/9V/12V)
--Battery max voltage : 18V on each cell
--Balance current : 0-10A (based on voltage difference)
--Balance status : keep on working in charging/discharging/free status when there is 20mv voltage
--difference
--Dimensions : 131*66*23 mm
--Weight : 0.5kg
--Protection : Reverse polarity protection
--Low Voltage Disconnect : 5V
--Voltage display accuracy : ±0.5%
--Certification : CE, RoHS
