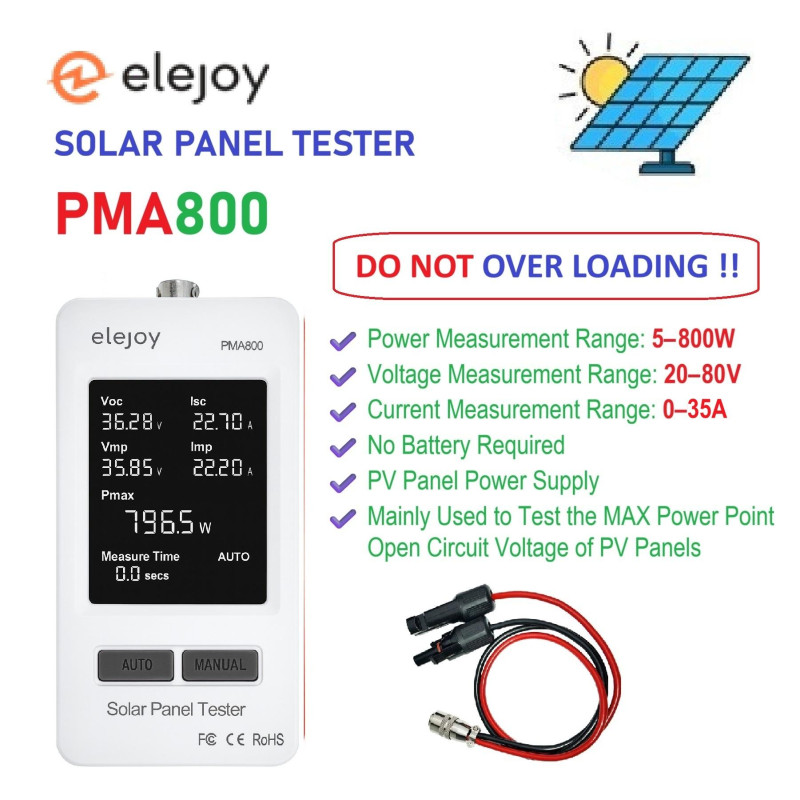

ELEJOY PMA800 Voltage 20-80V Max Power 800W Max Current 35A Solar Panel Tester

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

Solar Panel Multimeter

For panel below 80V 800W only!!!

Model : PMA800
Power : 5-800W
Voltage : 20-80V
Current : 0-35A

Measuring :
--Voc
--Vmp
--Isc
--Imp
--Pmax

This solar panel multimeter can test the maximum power point and open circuit voltage of photovoltaic panel.
Notice: The multimeter is directly powered by solar panels without additional batteries.

Use object:
1. Solar panel manufacturer
2. Solar panel distributor
3. Solar panel user
4. Solar panel fans

Attention:
1. Please be sure to use this product within the rated voltage and current power range.
2. Please be sure to disconnect the photovoltaic board from other equipment or loads before testing.

OVERVIEW :
The ELEJOY PMA800 LCD MPPT Solar Panel Multimeter is a smart digital power PV tester designed for solar panel manufacturers, distributors, and users. It tests maximum power point and open circuit voltage, powered directly by solar panels without additional batteries. With a 5-800W power range, 20-80V voltage, and 0-35A current, it ensures accurate measurements within rated ranges. The product features reverse connection, over-power, over-temperature, over-voltage, and over-current protections.

Power supply mode : Solar panel power supply
Packing : EVA package
Dimensions : 165×80×30 mm
Weight : 470g
