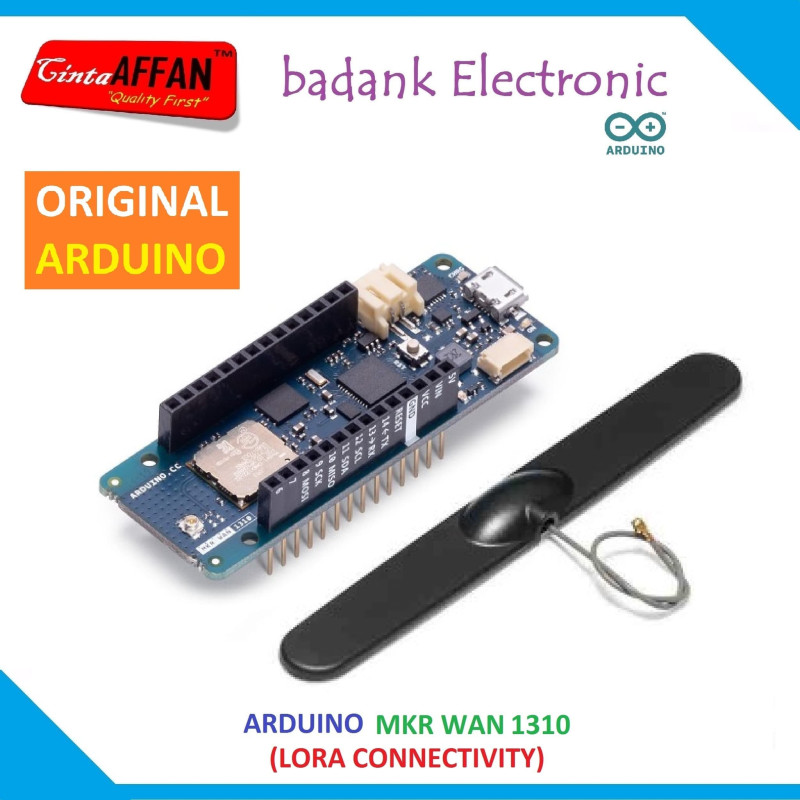

ARDUINO MKR WAN 1310 (LORA CONNECTIVITY)

################################## READY STOCK, SILAHKAN LANGSUNG ORDER ################################## ORIGINAL ARDUINO - MADE IN ITALY ARDUINO MKR WAN 1310 (LORA CONNECTIVITY) The Arduino MKR WAN 1310 board provides a practical and cost effective solution to add LoRa connectivity to projects requiring low power. This open source board can be connected to: the Arduino IoT Cloud, your own LoRa network using the Arduino LoRa PRO Gateway, existing LoRaWAN infrastructure like The Things Network, or even other boards using the direct connectivity mode. SPECIFICATION:

---

---

============ Microcontroller : SAMD21 Cortex-M0+ 32bit low power ARM MCU (datasheet) Radio module : CMWX1ZZABZ (datasheet) Board Power Supply (USB/VIN) : 5V Secure Element : ATECC508 (datasheet) Supported Batteries : rechargeable Li-Ion, or Li-Po, 1024 mAh minimum capacity Circuit Operating Voltage : 3.3V Digital I/O Pins : 8 PWM Pins : 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4) UART : 1 SPI : 1 I2C : 1 Analog Input Pins : 7 (ADC 8/10/12 bit) Analog Output Pins : 1 (DAC 10 bit) External Interrupts : 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2) DC Current per I/O Pin : 7 mA CPU Flash Memory : 256 KB (internal) QSPI Flash Memory : 2MByte (external) SRAM : 32 KB EEPROM : no Clock Speed : 32.768 kHz (RTC), 48 MHz LED_BUILTIN : 6 USB : Full-Speed USB Device and embedded Host Antenna gain : 2dB (bundled pentaband antenna) Carrier frequency : 433/868/915 MHz Length : 67.64 mm Width : 25 mm Weight : 32 gr.

---

---
