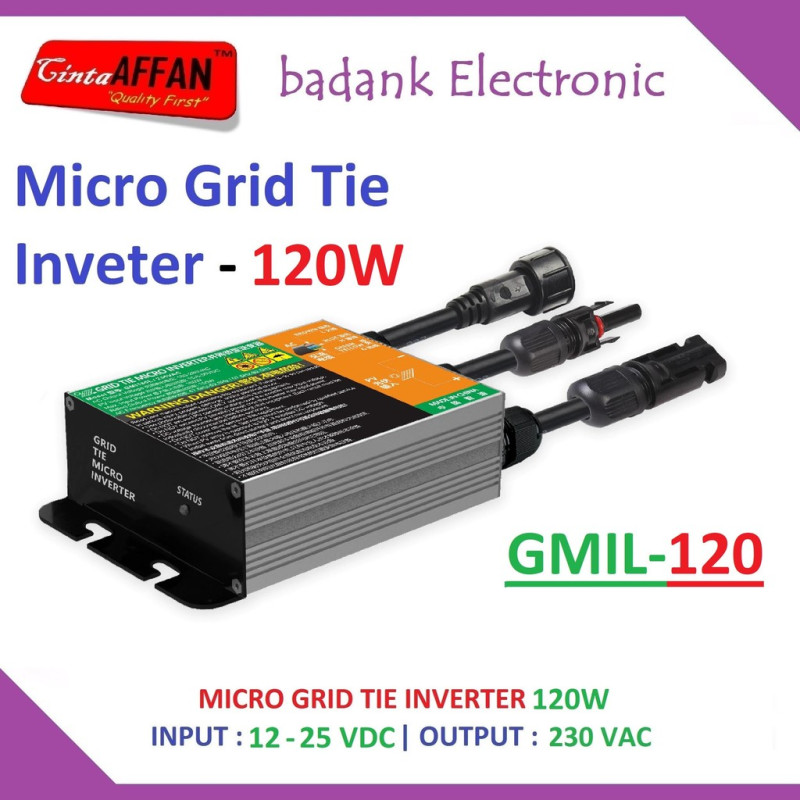

GMIL-120 Micro Grid Tie Inverter GTI 120W ON GRID Solar Panel Surya

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

Micro Grid Tie Inverter 120W, MPPT Input Range 12-25VDC Input, ON GRID TIE INVERTER, 230VAC Output, Pure Sine Wave

PANDUAN INSTALASI:
1. Pastikan sambungan sisi DC dan sisi AC terpasang semua sesuai schematic.
2. Pastikan polarity (+) dan (-) dari PV sudah benar (tidak terbalik).
3. Pastikan tegangan PV masuk dalam range teganan input inverter (tidak kurang dan tidak lebih)

SPESIFIKASI

Model : GMIL-120

INPUT DATA (DC, PV)
MPPT Voltage Range : 12.5V-25V
Operation Voltage Range : 10.8V-30V
Maximum Input Voltage : 30V
Startup Voltage : 10.8V
Maximum Input Power : 120W
Maximum Input Current : 7.5A

OUTPUT DATA (AC)
Single Phase Grid Type : 230V
Rated Output Power : 100W
Maximum Output Power : 110W
Nominal Output Current (230V) : 0.43A
Nominal Output Voltage : 230V
Default Output Voltage Range : 180V-280V
Nominal Output Frequency : 50Hz
Default Output Frequency Range : 47.5Hz - 52.5Hz
Power Factor : 0.99
Total Harmonic Distortion : THD l5%

EFFICIENCY
Peak Efficiency : 92.5% CEC
Weighted Efficiency (230V) : 91.5%
Nominal MPPT Efficiency : 99.9%
Night Power Consumption : 700mW

MECHANICL DATA
Operating Ambient Temperature Range : -40degC to +65degC
Storage Temerature Range : -40degC to +65degC
Dimension (W x H x D) : 35mm x 76mm x 203mm
Weight : 0.4kg
Waterproof Grade : IP55
Cooling Mode : Natural Convection - No Fans

OTHER FEATURES
Transformer Design : High Frequency Transformers, Galvanically Isolated
Integrated Ground : Equipment ground is provided by the PE in the AC cable. No additional ground is required.
Protection Functions : Temperature Protection, Current Protection
