DC Protection Relay 12V ADJUSTABLE Over Under VOLTAGE Battery Inverter

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

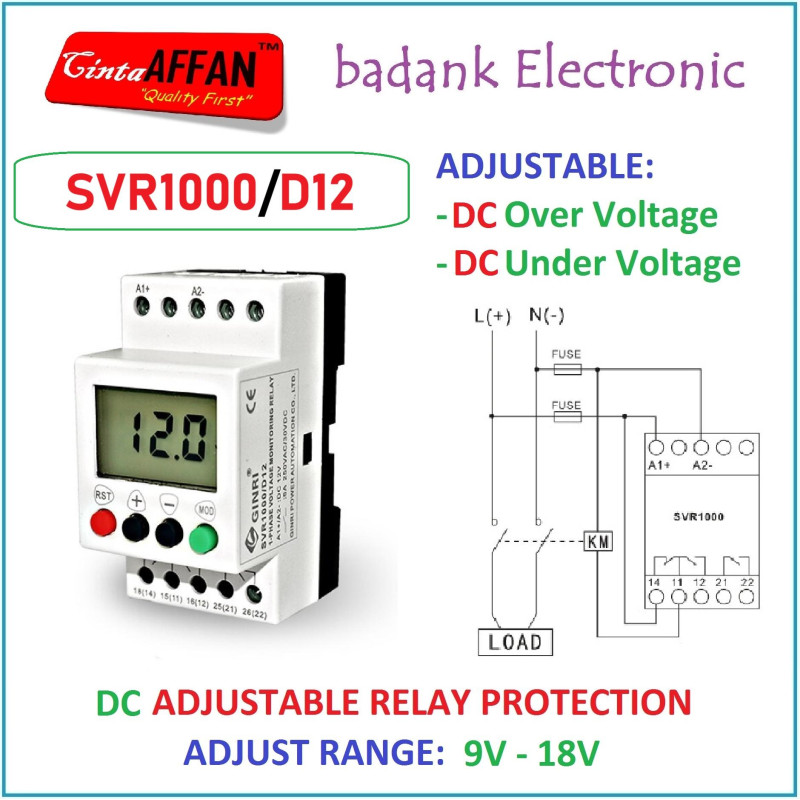

GNRI Adjustable Over Under Voltage Monitoring Relay Protection Device DIN Rail
Model : SVR1000/D12

Applicable for RATED VOLTAGE DC 12V
ADJUSTABLE VOLTAGE RANGE : 9V - 18V DC

Produk ini cocok untuk dikombinasikan dengan produk DC-DC Relay pada link berikut:
https://www.tokopedia.com/badank/coil-12v-dc-dc-relay-200a-automotive-heavy-duty-high-current-starting

FEATURES
-- Powered by the measuring circuit
-- Built-in LCD and keypad afford a precise,digital setting
-- Compact modular 43mm housing
-- Adjustable over- and undervoltage threshold
-- Independent adjustable delay time for overvoltage, undervoltage
-- 1 CO & 1NC contacts
-- Fault recording with last 3 faults

PROTECTIVE FUNCTIONS
-- Overvoltage
-- Undervoltage

TYOICAL APPLICATIONS
• Pumps • Fans
• Blowers • Motors
• Compressors• Solar Off Grid Inverter

TECHNICAL DATA
-- Model : SVR1000/D12
-- Measuring circuit : A1+,A2-
-- Rated voltage : DC 12V
-- Monitoring functions : overvolatege, undervoltage
-- Overvoltage setting range : DC 9.0~18.0V adjustable
-- Undervoltage setting range : DC 9.0~18.0V adjustable
-- Voltage hysteresis : 0.1~6.0V adjustable
-- Delay time for overvoltage and undervoltage : 0.1-999s adjustable
-- Reset mode : Manual/ Automatic/Automatic with power-on delay
-- Delay time for reset : 0.1-999s adjustable
-- Indicators : LCD indicating voltage,operationand fault status
-- Output contacts : 1 CO & 1NC
-- Contact capacity : 6A ,250VAC
-- Dimensions (H x W x D) : 80×43×54mm
-- Mounting : DIN rail
