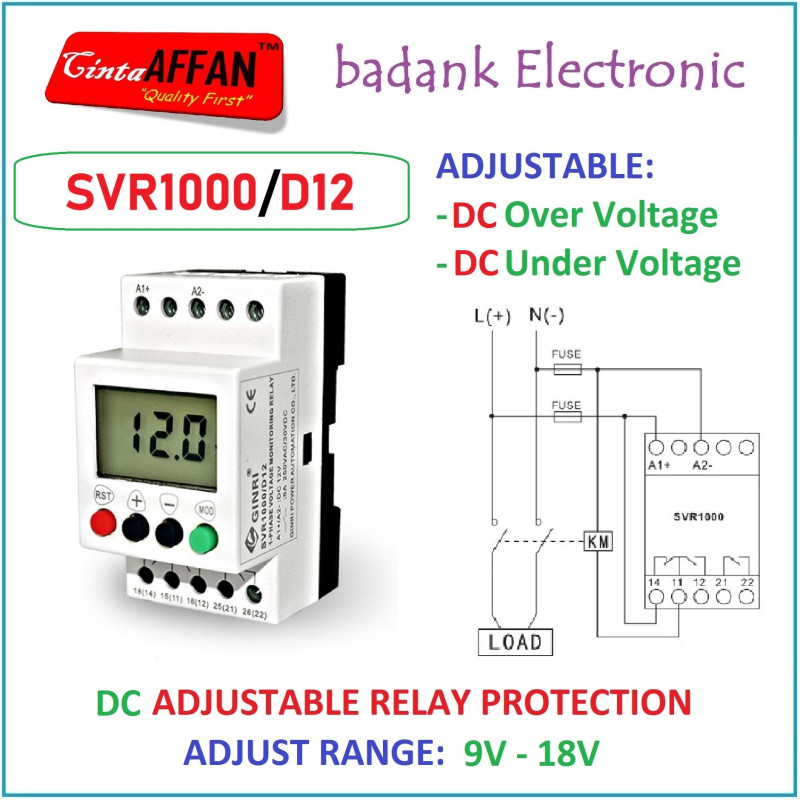

DC Protection Relay 12V ADJUSTABLE Over Under VOLTAGE Battery Inverter

Name: DC Protection Relay 12V ADJUSTABLE Over Under VOLTAGE Battery Inverter
Brand: badank Electronic
SKU: 1218049956
Price: 412250 IDR
Availability: InStock

Rp425,000

Rp412,250 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

GNRI Adjustable Over Under Voltage Monitoring Relay Protection Device DIN Rail
Model : SVR1000/D12

Applicable for RATED VOLTAGE DC 12V
ADJUSTABLE VOLTAGE RANGE : 9V - 18V DC

Produk ini cocok untuk dikombinasikan dengan produk DC-DC Relay pada link berikut:
https://www.tokopedia.com/badank/coil-12v-dc-dc-relay-200a-automotive-heavy-duty-high-current-starting

FEATURES
-- Powered by the measuring circuit
-- Built-in LCD and keypad afford a precise,digital setting
-- Compact modular 43mm housing
-- Adjustable over- and undervoltage threshold
-- Independent adjustable delay time for overvoltage, undervoltage
-- 1 CO & 1NC contacts
-- Fault recording with last 3 faults

PROTECTIVE FUNCTIONS
-- Overvoltage
-- Undervoltage

TYOICAL APPLICATIONS
• Pumps • Fans
• Blowers • Motors
• Compressors• Solar Off Grid Inverter

TECHNICAL DATA
-- Model : SVR1000/D12
-- Measuring circuit : A1+,A2-
-- Rated voltage : DC 12V
-- Monitoring functions : overvolatege, undervoltage
-- Overvoltage setting range : DC 9.0~18.0V adjustable
-- Undervoltage setting range : DC 9.0~18.0V adjustable
-- Voltage hysteresis : 0.1~6.0V adjustable
-- Delay time for overvoltage and undervoltage : 0.1-999s adjustable
-- Reset mode : Manual/ Automatic/Automatic with power-on delay
-- Delay time for reset : 0.1-999s adjustable
-- Indicators : LCD indicating voltage,operationand fault status
-- Output contacts : 1 CO & 1NC
-- Contact capacity : 6A ,250VAC
-- Dimensions (H x W x D) : 80×43×54mm
-- Mounting : DIN rail
