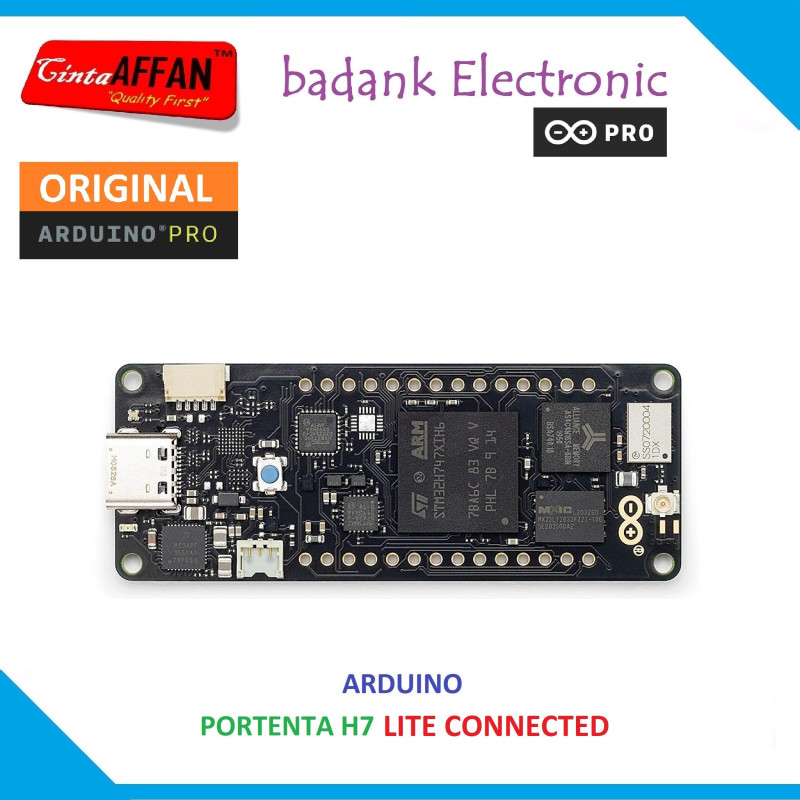

ARDUINO PORTENTA H7 LITE CONNECTED

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

ORIGINAL ARDUINO - MADE IN ITALY

ARDUINO PORTENTA H7 LITE CONNECTED

---

OVERVIEW :
The Portenta H7 Lite Connected is designed to provide the computational power of the Portenta H7 for AI applications and low-latency control solutions, with a module that is made more cost-effective by removing the high-resolution video interface feature. It fills the gap between the full H7 and the H7 Lite versions by integrating wireless connectivity, adding yet another option for Arduino Pro clients to build the perfect solution with the right combination of performance and simplicity.

SPECIFICATION :
-- MICROCONTROLLER : STM32H747XI dual Cortex-M7+M4 32bit low power Arm MCU (datasheet)
-- CONNECTIVITY : Ethernet, WiFi, BLE
-- SECURE ELEMENT (DEFAULT) : Microchip ATECC608
-- POWER SUPPLY (USB/VIN) : 5V
-- SUPPORTED BATTERY : Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
-- CIRCUIT OPERATING VOLTAGE : 3.3V
-- CURRENT CONSUMPTION : 2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
-- TIMERS : 22x timers and watchdogs
-- UART : 4x ports (2 with flow control)
-- ETHERNET PHY : 10 / 100 Mbps (through expansion port only)
-- SD CARD : Interface for SD Card connector (through expansion port only)
-- OPERATIONAL TEMPERATURE : -40 °C to +85 °C
-- MKR HEADERS : Use any of the existing industrial MKR shields on it
-- HIGH-DENSITY CONNECTORS : Two 80 pin connectors will expose all of the module #39;s peripherals to other devices
-- CAMERA INTERFACE : 8-bit, up to 80 MHz
-- ADC : 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
-- DAC : 2× 12-bit DAC (1 MHz)
-- USB-C : Host / Device, High / Full Speed, Power delivery

---
