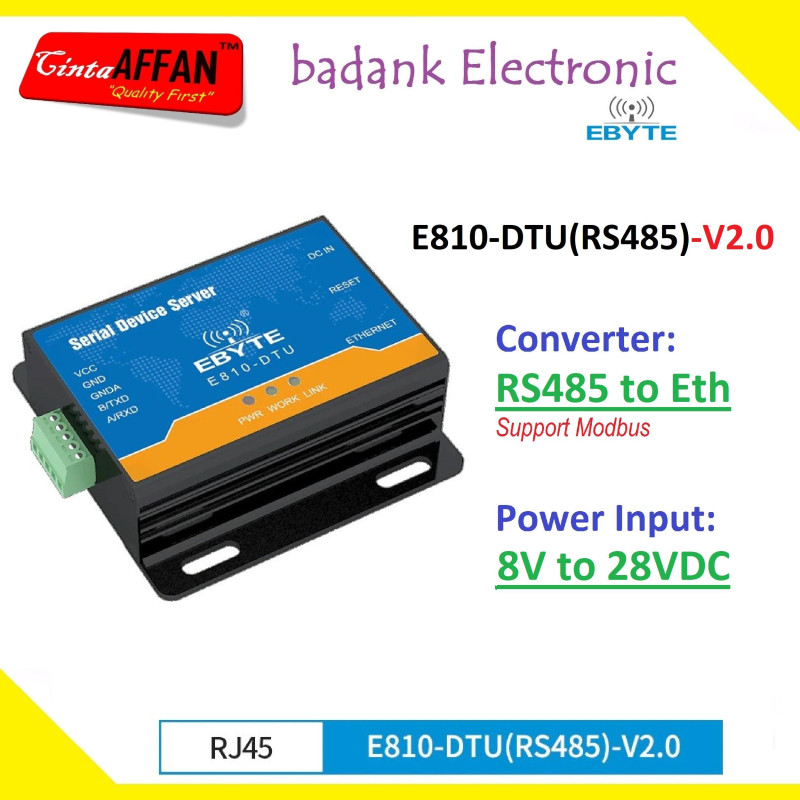

EBYTE E810-DTU (RS485) V2 Modbus RS485 to ETHERNET Device Converter
Rp450,000
Rp436,500
Save 3%
Tax excluded
SKU: 338411711
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
EBYTE E810-DTU (RS485) V2 - Support MODBUS
Modbus RS485 to ETHERNET Converter
Power Supply Input : 8V - 28VDC
FEATURES:
Ethernet RJ45 to RS485 Serial Port Server Wireless Transceiver Modem E810-DTU(RS485)-V2.0 TCP UDP 100M Full Duplex Module
SPECIFICATIONS:
Size : 66 * 66 *21.6mm
Weight : 791g
PCB process : 2 layerSMT, lead-free
Connector : RS485/RS2321*5*3.81mm
Supply voltage : 8~28V DC (Note : Higher than 28V will cause permanent damage)
UART standard : 300~256000 bps
Serial communication level : 3.3V (If connected to 5V, level conversion is required)
Ethernet specification : RJ4510/100Mbps
Network protocol : IP TCP/UDP ARP ICMP IPV4
IP Acquisition : Static IP, DHCP, DNS
Available User configuration : PC software ,AT command configuration Web page configuration
Simple transparent transmission : TCP Server TCP Client UDP Server UDP Client TCP
Server connection : Max. 6 channel of TCP connections
Package mode : 200 bytes per package
Operating current : 77.0314mA@12V(RS485) 74.5635mA@12V(RS232)
Operating temperature : -40 ~ +85
Operating humidity : 10% ~ 90%relative humidity, no condensation
Storage temperature : -40 ~ +125
338411711
250 g
1 Item
Available Warehouse Stock
Jakarta
1
