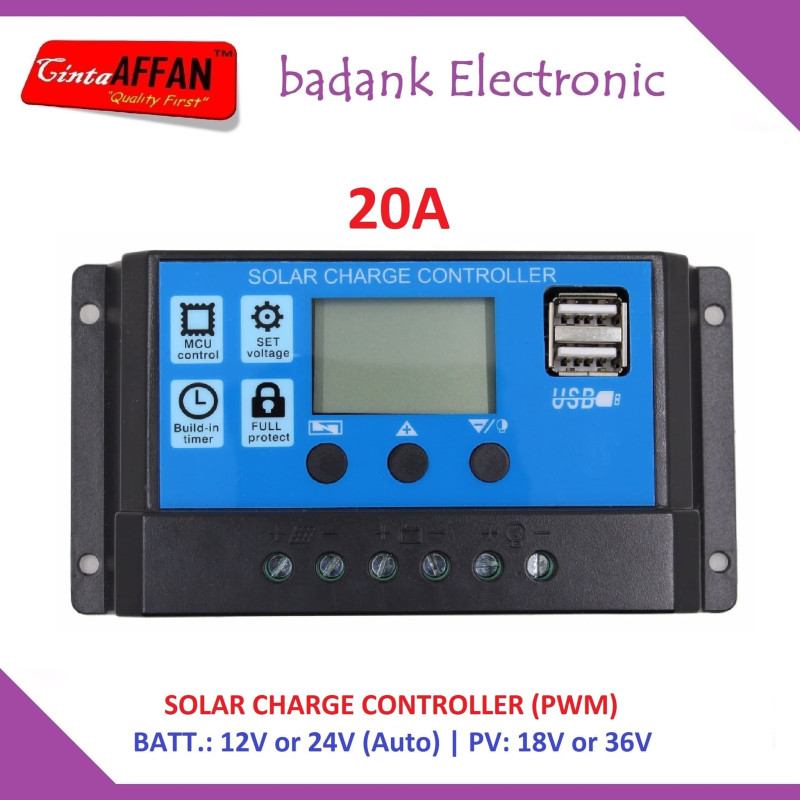

20A PWM Solar Charge Controller 12V 24V 20A with LCD 20 A
search
  • 20A PWM Solar Charge Controller 12V 24V 20A with LCD 20 A
  • 20A PWM Solar Charge Controller 12V 24V 20A with LCD 20 A
  • 20A PWM Solar Charge Controller 12V 24V 20A with LCD 20 A
  • 20A PWM Solar Charge Controller 12V 24V 20A with LCD 20 A
  • 20A PWM Solar Charge Controller 12V 24V 20A with LCD 20 A

20A PWM Solar Charge Controller 12V 24V 20A with LCD 20 A

Rp31,000
Rp30,070 Save 3%
Tax excluded
Quantity

SKU: 969210753
  Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

  Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

  Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

################################## READY STOCK, SILAHKAN LANGSUNG ORDER ################################## Solar Charge Controller PWM auto selection 24V 12V rating 20A dengan LCD Display. Dapat mengenali secara auto jenis battery Lead acid ataukah Gel battery.Untuk battery 12V: max PV voltage 25V, max charging power nya 260W Untuk battery 24V: max PV voltage 50V, max charging power nya 520W



== MODEL: RBL-20A FEATURES: 1.Build-in industrial micro controller. 2.Big LCD display,all adjustable parameter. 3.Fully 4-stage PWM charge management. 4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection. 5.Dual mosfet Reverse current protection ,low heat production. SPECIFICATIONS: Battery Voltage: 12V 24V Auto Charging Current: 20A Discharging Current: 20A Max Solar input: 50V(for 24V battery) 25V(for 12V battery) Equalization: * 12V system -- gt; 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) * 24V system -- gt; 28.8V(Sealed) 28.4V(Gel) 29.2V(Flood) Float charge: * 12V system -- gt; 13.7V(defaul,adjustable) * 24V system -- gt; 27.4V(defaul,adjustable) Discharge stop: * 12V system -- gt; 10.7V(defaul,adjustable) * 24V system -- gt; 21.4V(defaul,adjustable) Discharge reconnect: * 12V system -- gt; 12.6V(defaul,adjustable) * 24V system -- gt; 25.2V(defaul,adjustable) USB output: 5V/3A Self-consume: 10mA Operating temperature: -35C~+60C

== Untuk produk terkait lainnya bisa dijumpai pada link berikut: https://www.tokopedia.com/badank/etalase/solar-controller
