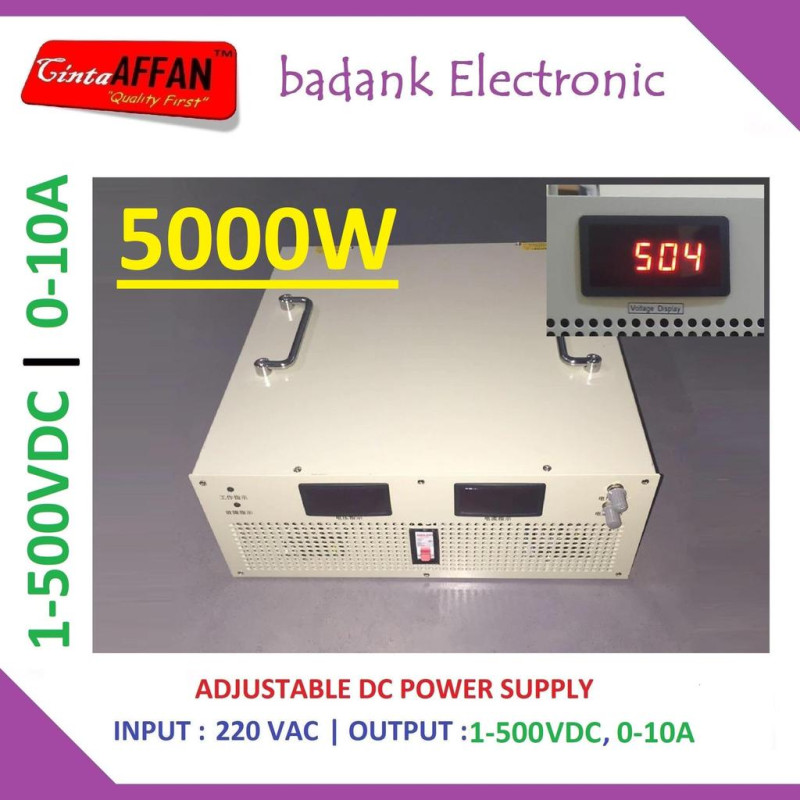

5000W Adjustable DC Power Supply Switching (Vmax 500V Imax 10A)

##############################

READY STOCK, SILAHKAN LANGSUNG ORDER

##############################

Power Supply Adjustable

Max Power 5000W

Variable Voltage Setting : DC 1-500V

Variable Limiting Current : DC 0-10A

APPLICATIONS:

1. PCB board manufacturing industry

2. LED products, motors and dc fans test,

3. Electrofacing, electrolyzation, electronic components ageing

4. Laboratory , Electronic equipment , Automatic Test Equipment

5. All other occasions need to use DC Power Supply

PROTECTION FUNCTION:

1. Over voltage protection

2. over load protection

3. over temperature protection(threshold value:70°C-75°C)

4. current limitation protection

FEATURES:

1. single phase, single output dc power supply

2. constant voltage and constant current operation (C.C and C.V. automatic conversion)

3. both current and voltage can be adjusted from 0 to rated value

4. 2LED digital display

5. Built-in EMI filter.(have anti-interference circuit)

6. intelligent temperature control fan to help power supply cooling fast

SPECIFICATIONS:

Model No: s-5000

Input voltage: single-phase 220V±10% 50Hz

Working conditions: -10°C -40°C relative humidity :< 90%

Storage conditions: -20°C-80°C relative humidity :< 80%

Output voltage: 1-500VDC

Output current: 0-10A

Display Accuracy: ±1%±1 digit

Voltage stabilization: ≤0.2%

Current stabilization: ≤0.5%

Load stabilization: ≤0.3%

Ripples and noises: ≤1 %( RMS)

Surge Current: 60A/230V (cold-start)

Input Leakage Current: Withstanding voltage test:

---From input voltage to output voltage: 1.5KVAC/min

---From input voltage to case: 1.5KVAC/min

---From output voltage to case: 500VAC/min

Product size: 485*400*150mm
