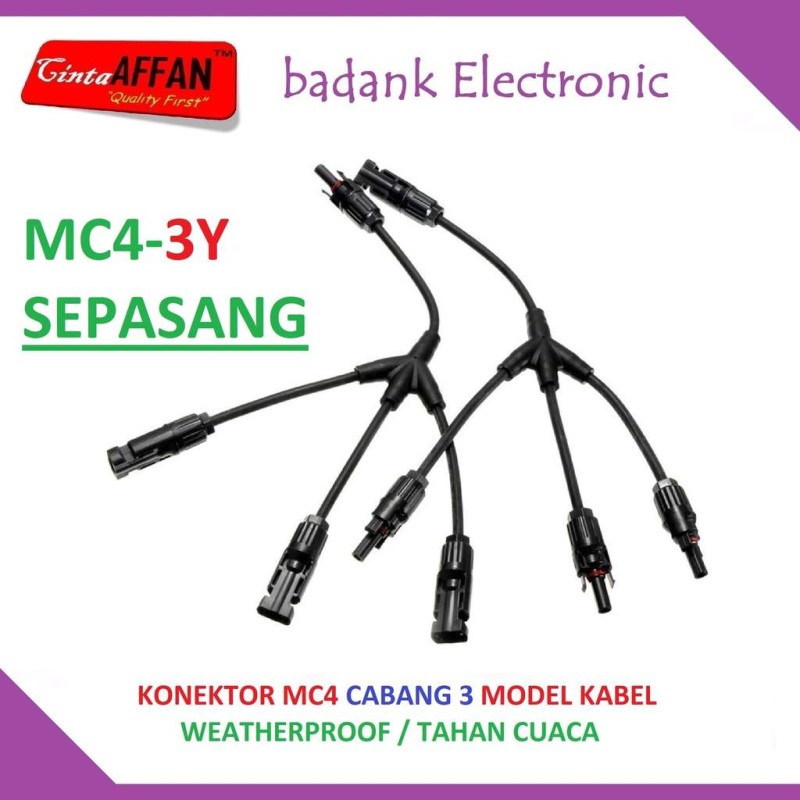

MC4-3Y Connector MC4 Cabang 3 (sepasang) 1000V Solar Panel Surya
Rp69,000
Rp66,930
Save 3%
Tax excluded
SKU: 781055573
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
Konektor MC4-3Y
model kabel cabang 3 (sepasang) untuk memparalelkan kabel Panel Surya
Harga adalah Sepasang Male-Female konektor Y 3-Cabang
PRODUK SESUAI GAMBAR
sepasang (warna hitam)
Specification:
100% brand new and high quality For connecting solar panels Compatible with connector
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 30A
Suitable cable cross sections 2.5mm2~ 6.0mm2 / 14AWG~10AWG
Pin dimension 4.0mm
Proof voltage DC 8KV(1Min)
Pollution degree 2
Protection class Class II
Contact Material Copper, tin-plated
Contact Resistance 5mW
Connector Material PPO
Degree of Protection IP IP67(IEC 60529)
Withdrawal Force 3 50N
Insertion Force 50N
Temperature Range -40oc~ +85oc
Flame Class UL94V - 0
Package includes :
1 Pair x Y 3 Branch MC4 Connector
