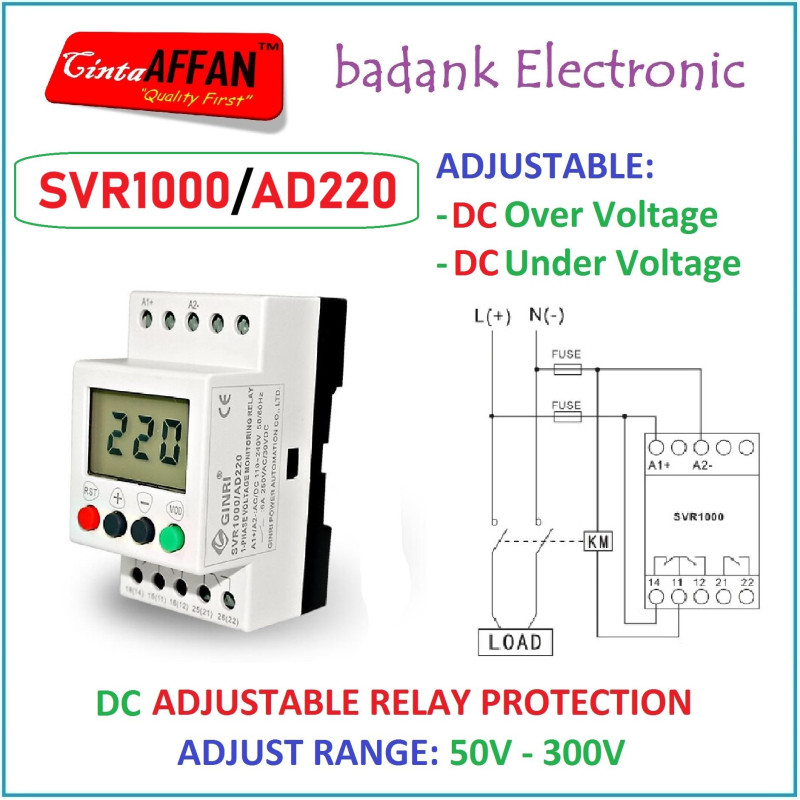

DC Protection Relay 72V 96V 240V ADJUSTABLE Over Under VOLTAGE Battery

Name: DC Protection Relay 72V 96V 240V ADJUSTABLE Over Under VOLTAGE Battery
Brand: badank Electronic
SKU: 1218071270
Price: 509250 IDR
Availability: InStock

Rp525,000

Rp509,250 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

GNRI Adjustable Over Under Voltage Monitoring Relay Protection Device DIN Rail
Model : SVR1000/AD220

Applicable for RATED VOLTAGE DC 72V 96V 240V
ADJUSTABLE VOLTAGE RANGE : 50V - 300V AC/DC

FEATURES
-- Powered by the measuring circuit
-- Built-in LCD and keypad afford a precise,digital setting
-- Compact modular 43mm housing
-- Adjustable over- and undervoltage threshold
-- Independent adjustable delay time for overvoltage, undervoltage
-- 1 CO & 1NC contacts
-- Fault recording with last 3 faults

PROTECTIVE FUNCTIONS
-- Overvoltage
-- Undervoltage

TYOICAL APPLICATIONS
Pumps Fans
BlowersMotors
Compressors Solar Off Grid Inverter

TECHNICAL DATA

-- Model : SVR1000/AD220
-- Measuring circuit : A1+,A2-
-- Rated voltage : AC/DC 110~240V,50/60Hz
-- Monitoring functions : overvolatege, undervoltage
-- Overvoltage setting range : AC/DC 50.0~300.0V adjustable
-- Undervoltage setting range : AC/DC 50.0~300.0V adjustable
-- Voltage hysteresis : 1.0~90.0V adjustable
-- Delay time for overvoltage and undervoltage : 0.1-999s adjustable
-- Reset mode : Manual/ Automatic/Automatic with power-on delay
-- Delay time for reset : 0.1-999s adjustable
-- Indicators : LCD indicating voltage,operationand fault status
-- Output contacts : 1 CO & 1NC
-- Contact capacity : 6A ,250VAC
-- Dimensions (H x W x D) : 804354mm
-- Mounting : DIN rail
