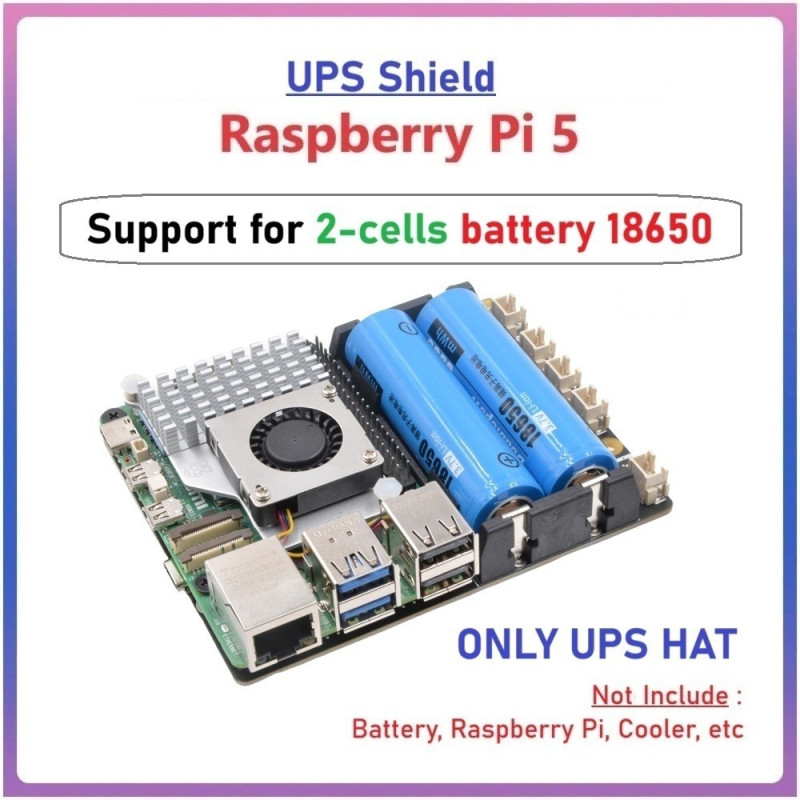

SUPTRONICS X1201 UPS Shield 5.1V 5A 2-Cell 18650 Batt Holder

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

UPS SHIELD with 2-Cells Battery 18650 Holder
For Raspberry Pi 5

Notes :
1. Saat menggunakan UPS HAT ini, seluruh kebutuhan power board Raspberry akan disupply oleh UPS HAT ini.
2. Pada penggunaan dekstop wayland "WAYFIRE", akan MUNCUL notifikasi low voltage (hanya saat awal booting saja), namun itu tidak mengganggu performa maupun fungsi peripherals pada board Raspberry.
3. Pada penggunaan dekstop wayland "X11", TIDAK MUNCUL notifikasi low voltage.

*** ITEM 2 PADA NOTES DIATAS TIDAK DAPAT DIJADIKAN ALASAN UNTUK RETUR/REFUND ***
*** MEMBELI = MEMAHAMI DAN MENYETUJUI ***

NOT INLUDED :
-- Battery
-- Board Raspberry Pi 5
-- Metal Case
-- Cooler
-- etc (other than mentioned in the above package list)

Compatible for :
-- Raspberry Pi 5 (RAM 2GB, 4GB, 8GB, 16GB)
-- Official/Third Party Active Cooler
-- Official/Third Party M.2 HAT
-- NVME top Shield

NOT Compatible :
--- NVME Base/Bottom Board

FEATURES
UPS Output :
--- Provides continuous operation for up to 6 hours (duration depends on battery type and applications)
--- Supports a maximum current output of 5.1V 5000mA, suitable for most Raspberry Pi applications
--- Convenient pogo pin connection for powering the Pi, eliminating the need for cabling and soldering
Battery Charging :
--- Supports fast battery charging with a capacity of 3000mA
--- Battery charging control can be managed via GPIO
--- Provides protection against battery overcurrent and overvoltage
--- Built-in protection against reverse connection of battery cells
--- Integrated Maxim's fuel-gauge systems for reading battery voltage and percentage over i2c
--- On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%
--- Features a 2-cell 18650 battery holder
Power Input :
--- Powered through the USB-C socket, eliminating the need to change your power adapter
--- XH2.54 connector provided for alternative power sources

SPECIFICATIONS :
Power input : 5Vdc 5A via USB Type-C / XH2.54-2P connector
UPS output : 5.1V ±5% Max 5A
Battery charging current : Max 2.3-3.2A
Terminal Battery Voltage : 4.23V
Battery Recharge Threshold : 4.1V
Ports & Connectors:
--- USB Type-C socket
--- 18650 battery socket x2
--- 5V Power output connector x3 - XH2.54 2-pin
--- 5V Power input connector x1 - XH2.54 2-pin
--- External power button connector x1 - XH2.54-2P
PCB Size: 106.6mm x 85mm

NOTES :
--- Do not apply power to your Raspberry Pi via the Type-C USB socket.
--- Do not use 18650 battery with built-in protection circuit.
