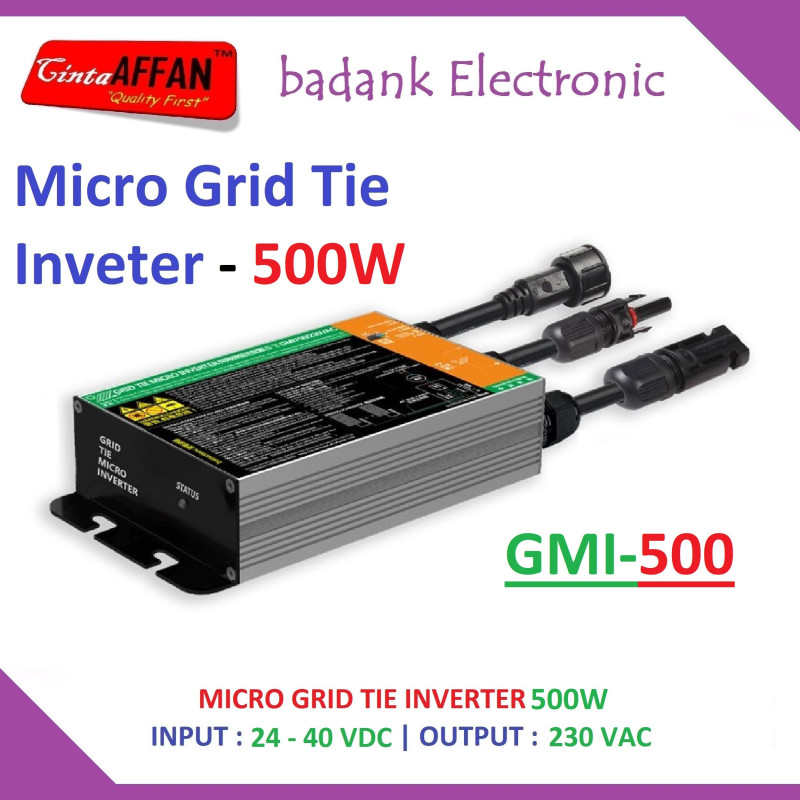

GMI-500 Micro Grid Tie Inverter GTI 500W ON GRID Solar Panel Surya
Rp1,371,000
Rp1,329,870
Save 3%
Tax excluded
SKU: 2733306207
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
Micro Grid Tie Inverter 500W, MPPT Input Range 24-40VDC Input, ON GRID TIE INVERTER, 230VAC Output, Pure Sine Wave
PANDUAN INSTALASI:
1. Pastikan sambungan sisi DC dan sisi AC terpasang semua sesuai schematic.
2. Pastikan polarity (+) dan (-) dari PV sudah benar (tidak terbalik).
3. Pastikan tegangan PV masuk dalam range teganan input inverter (tidak kurang dan tidak lebih)
SPESIFIKASI:
Model : GMI-500
INPUT DATA (DC, PV)
MPPT Voltage Range : 24V-40V
Operation Voltage Range : 18V-50V
Maximum Input Voltage : 50V
Startup Voltage : 18V
Maximum Input Power : 500W
Maximum Input Current : 20A
OUTPUT DATA (AC)
Single Phase Grid Type : 230V
Rated Output Power : 490W
Maximum Output Power : 500W
Nominal Output Current (230V) : 2.13A
Nominal Output Voltage : 230V
Default Output Voltage Range : 180V-280V
Nominal Output Frequency : 50Hz
Default Output Frequency Range : 47.5Hz - 52.5Hz
Power Factor : >0.99
Total Harmonic Distortion : THD
EFFICIENCY
Peak Efficiency : 92.5%
CEC Weighted Efficiency (230V) : 90.5%
Nominal MPPT Efficiency : 99.9%
Night Power Consumption : 700mW
MECHANICL DATA
Operating Ambient Temperature Range : -40degC to +65degC
Storage Temperature Range : -40degC to +65degC
Dimension (W x H x D) : 41mm x 106mm x 282mm
Weight : 0.95kg
Waterproof Grade : IP55
Cooling Mode : Natural Convection - No Fans
OTHER FEATURES
Transformer Design : High Frequency Transformers, Galvanically Isolated
Integrated Ground : Equipment ground is provided by the PE in the AC cable. No additional ground is required
Protection Functions : Temperature Protection, Current Protection
