Orange Pi 5 ULTRA - 8GB RAM

Rp4,298,000
Rp4,169,060 Save 3%
Tax excluded
Quantity

SKU: 3848448671
  Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

  Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

  Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

############################
READY STOCK, SILAHKAN LANGSUNG ORDER
############################

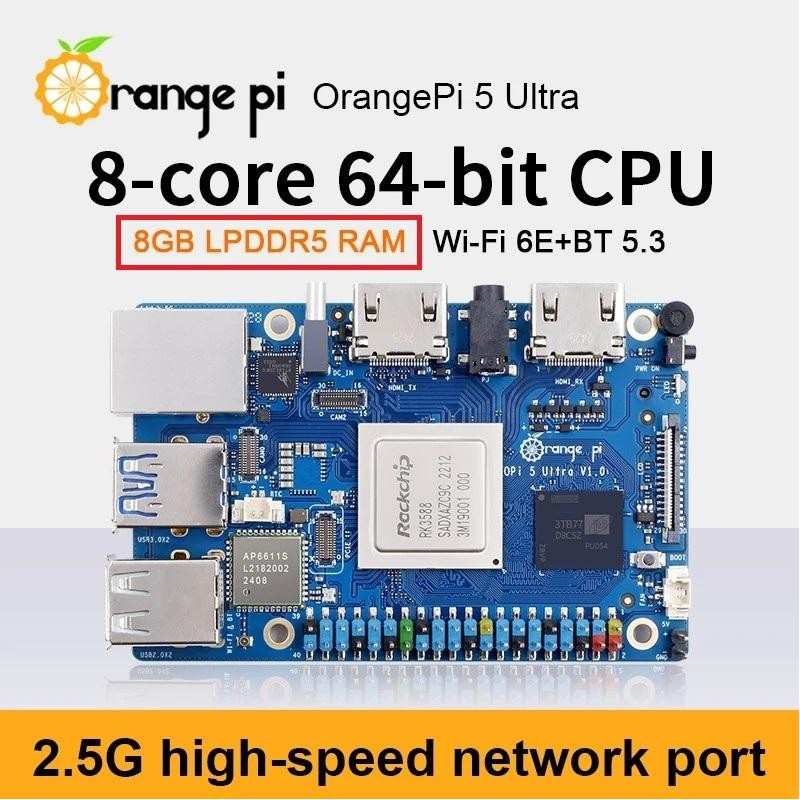

Orange Pi 5 ULTRA, RAM 8GB LPDDR5

SUPPORTED OS :
- Orange Pi OS (OH)
- OpenWRT
- Orange Pi OS (Arch)
- Orange Pi OS (Droid)
- Ubuntu
- Debian
- Android


===

HARDWARE SPEC:

Master Chip : Rockchip RK3588 (8nm LP process)
CPU :
--- 8-core 64-bit processor
--- 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor
--- Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz
GPU :
--- Integrated ARM Mali-G610
--- Built-in 3D GPU
--- Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2.
NPU : Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU : RK806-1
RAM : LPDDR5 496PIN:4GB、8GB、16GB optional
Memory :
--- eMMC Flash Sockets(default)
--- Onboard eMMC(customizable)
Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional
--- QSPI Nor FLASH: 16MB
--- MicroSD card slot
--- M.2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)
USB : 2*USB3.0;2*USB2.0;
Video :
--- 1* HDMI 2.1 out up to 8k@60FPS
--- 1* HDMI 2.0 in up to 4k@60FPS
--- 1* MIPI DSI TX 4 Lane
Camera :
--- 2* MIPI CSI 4 Lane
--- 1* MIPI D-PHY RX 4 Lane
Audio : CODEC:ES8388
--- 1* Audio 3.5mm jack with mic
--- 1*MIC In
--- 1*HDMI 2.1 eARC
Ethernet : 1*PCIe 2.5G LAN(RTL8125BG )
Wi-Fi+BT Module : Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611
Wi-Fi interface : SDIO3.0
BT interface : UART/PCM
Expansion Port : Dual-row pin: 2.54mm 40Pin
Supports DC 5V and 3.3V power output
Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button : 1* BOOT key, 1 * On/Off key
Power Source : Supports Type-C power supply, 5V @ 5A
LED : RGB LED Side Illumination
FAN : 5V 2PIN 1.25mm socket
RTC : 3V 2PIN 1.25mm socket
Debugging : Debug serial UART included in 40PIN expansion port
Supported OS : Orangepi OS(Droid), Orangepi OS(Arch), Orangepi OS(OH), Ubuntu, Debian, Android13


===
