IAMMETER CLOUD 3-Phase WIFI Bidirectional Energy Meter 3-Sensor CT 3000A

Name: IAMMETER CLOUD 3-Phase WIFI Bidirectional Energy Meter 3-Sensor CT 3000A
Brand: badank Electronic
SKU: BD318094
Price: 8705750 IDR
Availability: InStock

Rp8,975,000

Rp8,705,750 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

ENERGY METER CLOUD MONITORING (3-SENSOR CT 3000A)

INTERFACE :
---via ANDROID/IOS, APPS : IAMMETER
---via Laptop/computer (web browser)

WEM3046T (3-sensor CT 3000A) :
---Aplikasi untuk 1-titik pengukuran listrik 3-fasa 380V (4-wire / R, S, T, N)
---Aplikasi untuk 3-titik pengukuran listrik 1-fasa 220V (2-wire / L, N)

Harga SUDAH TERMASUK cloud storage fee lifetime period.

KEY FEATURES
---Real-time energy monitoring via your Wi-Fi network
---Simply one-key Wi-Fi setup to connect to your Wi-Fi network
---Enterprise-class performance, suitable for domestic, commercial, industrial use and solar system
---Cloud service and Mobile app is available
---Support local monitoring via LAN or uploading the data to your specified server
---4-pole DIN-rail mounting fits neatly in the meter box

GENERAL SPECIFICATION

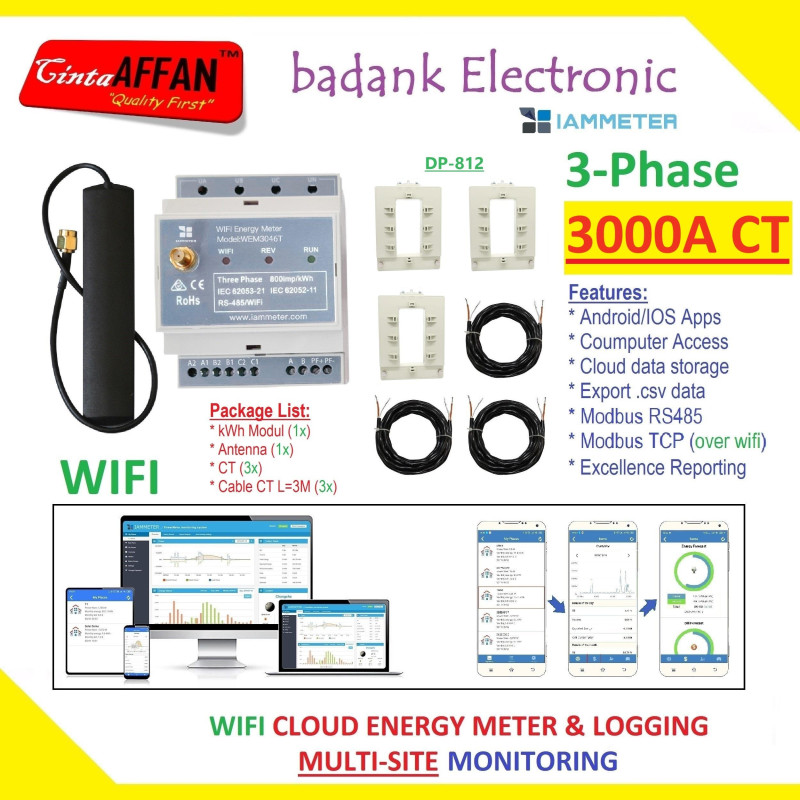

Standard package :
---1. Wi-Fi Energy Meter (WEM3046T) (x1)
---2. Split-core Current Transformer 3000A (x3), CT perforation 80x120mm (DP-812)
---3. Cable for CT L=3M (x3)
---3. 2.4G Wi-Fi Antenna (x1)
Power Supply : Built-in universal power supply
Communication : Built-in Wi-Fi
Antenna : External 2.4G antenna with SMA male
Reporting interval : 1-5 minutes interval, typically 1 minute
Report contents : Active Energy (Forward and Reverse), Active Power, Voltage, Current, Frequency
Configuration :
---1. Wi-Fi access point and webpage for setting SSID and password
---2. Mobile App for setting SSID and password
Monitoring Scenarios :
---1. Monitor on Iammeter Cloud
---2. Monitor locally on your PC via WLAN (Http get interface)
---3. Integrate with third party server, such as your own server, PVoutput and HomeAssistant (TCP/SSL interface)

ELECTRICAL CHARACTERISTIC
Input Voltage : 80-277 V AC (Phase Voltage), 140-480 V AC (Line Voltage)
Measurement Accuracy : 1.0%, Class-1 (Voltage, Current, Active Power, Energy)

Typical power consumption : 2W(220VAC input)
