L50M BLACK - Kabel Panel Surya 10mm2 1500V OLFLEX SOLAR XLR-E LAPP Made In Germany
Rp3,150,000
Rp3,055,500
Save 3%
Tax excluded
SKU: BD167438
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
L = 50M

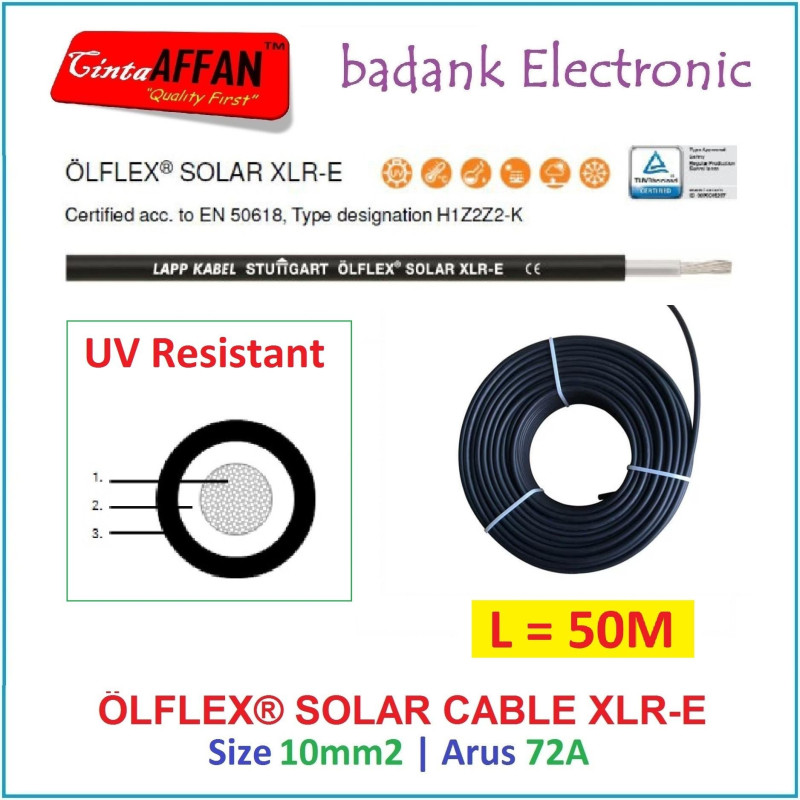

Kabel Panel Surya 10mm2 1500V OLFLEX SOLAR XLR-E LAPP Made In Germany
Spesifikasi:
- Ukuran konduktor kabel 10 mm2
- Arus maksimum 72A
- Warna kabel: HITAM (satu warna)
Technical Data
Classification : ETIM 5.0
Class-ID: EC001578 ETIM 5.0
Class-Description: Flexible cable
Conductor standings : Fine wire according to VDE 0295, IEC60228 class 5
Minimum Bending Radius : Fixed installation: 4x outer diameter
Nominal Voltage : AC U0/U : 1,0/1,0 kV DC U0/U : 1,5/1,5 kV
Max. permissible operating voltage : DC 1,8 kV
Test Voltage : AC 6500 V
Current rating : 72A compliance with EN 50618
Temperature Range : -40 - +90 C EN 50618
Product Feature :
1. Halogen-free and flame-retardant
2. weather/UV-resistant acc. to EN 50618
3. Ozone-resistant according to EN 50396
4. XLRE = X linked Radiated EN Standard
Benefits :
1. Robust against mechanical impact
2. For Outdoor application
3. Extruded color stripe serves as reverse polarity protection during installation
4. Exact quantity control during installation by meter marking on the cable sheath
5. Reduction of flame propagation and of toxic combustion gases in the event of fire
BD167438
6350 g
