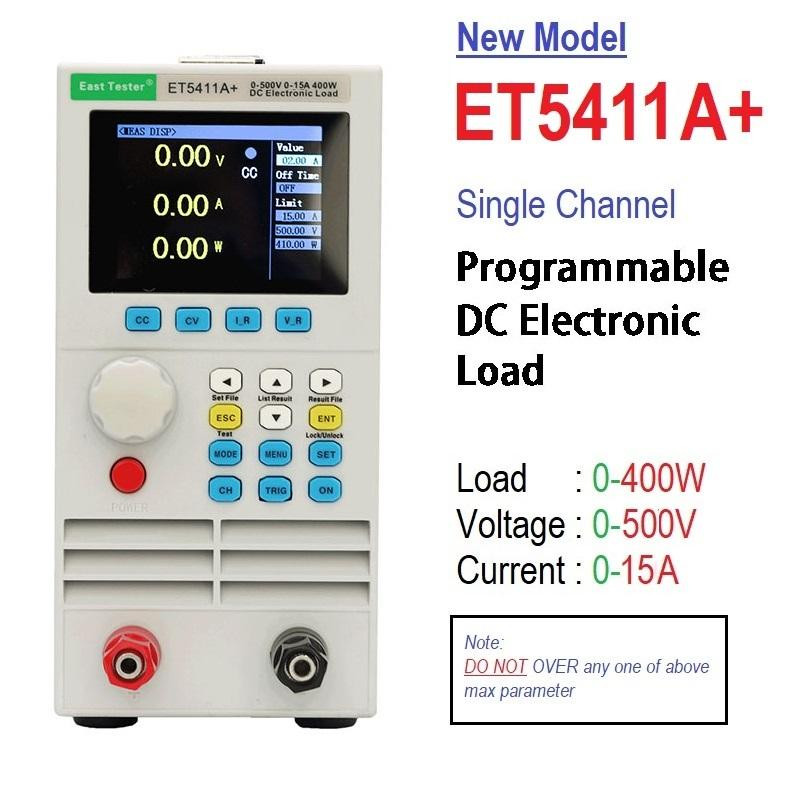

400W ET5411A Programmable DC Electronic Load 500V 1x15A Battery Tester

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

DC Electronic Load

ET5411A+
---Single Channel
---Max Load : 400W
---Voltage Setting : 0-500V
---Current Setting : 0-15A

Download PC Software : email us

ET54 series single/double channel programmable dc electronic load, USES the high performance chip, high speed, high precision design, provide 1mV,1mA resolution, superior performance, can be widely applied to the charger, switching power supply, linear power supply, production test of all kinds of batteries and other industries, scientific research institutions such as the test research and development.

================

SPECIFICATION

Brand : East Tester
MODEL : ET5411A+
Rated input :
--Power : 400W
--Input voltage : 0-500V
--Input current : 0-15A
CV mode :
--Range : 0.1~19.999V, 0.1~500.00V
--Resolution : 1mV, 10mV
--Accuracy : ±(0.05%+0.02%FS)
CC mode :
--Range : 0~3.000A, 0~15.00A
--Resolution : 1mA, 10mA
--Accuracy : ±(0.05%+0.05%FS)
CR mode :
--Range : 0.05Ohm~1kOhm, 1kOhm~4.5kOhm
--Resolution : 10mOhm, 100mOhm
--Accuracy : ±(0.1%+0.5%FS)
CP mode :
--Range : 0~400W
--Resolution : 10mW
--Accuracy : ±(0.1%+0.5%FS)
Tran Test :
--Mode : CC, CV
--T1&T2 : 50ms~60s
Battery Test :
--Discharge mode : CC, CR
--Maximum discharge capacity : 9999Ah
--Resolution : 1mA, 10mA, 10mOhm, 100mOhm
Range of measurement :
Voltageread-back value :
--Range : 0~19.999V, 0~500.00V
--Resolution : 1mV,10mV
--Accuracy : ±(0.05%+0.1%FS)
Currentread-back value :
--Range : 0~3.000A, 0~15.00A
--Resolution : 1mA, 10mA
--Accuracy : ±(0.05%+0.1%FS)
Powerread-back value :
--Range : 400W
--Resolution : 10mW
--Accuracy : ±(0.1%+0.5%FS)
Scope of protection :
--Over Voltage Protection(OV) : >21V OR >510V over voltage protection
--Over Current Protection(OC) : >3.1 or >16A over current protection
--Over Power Protection(OP) : 410W
--Over Temperature Protection : 85 DegC

================
