OFFICIAL Raspberry Pi 5 M.2 HAT compatible for SSD NVME 2230 and 2242

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

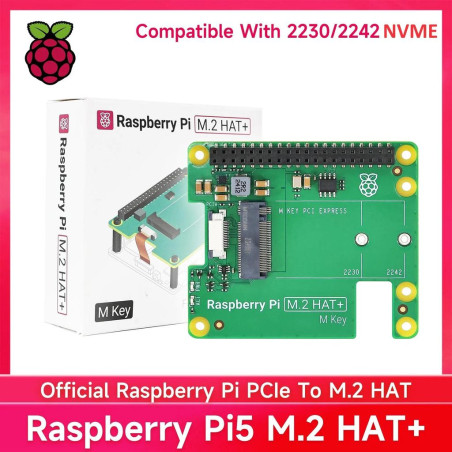

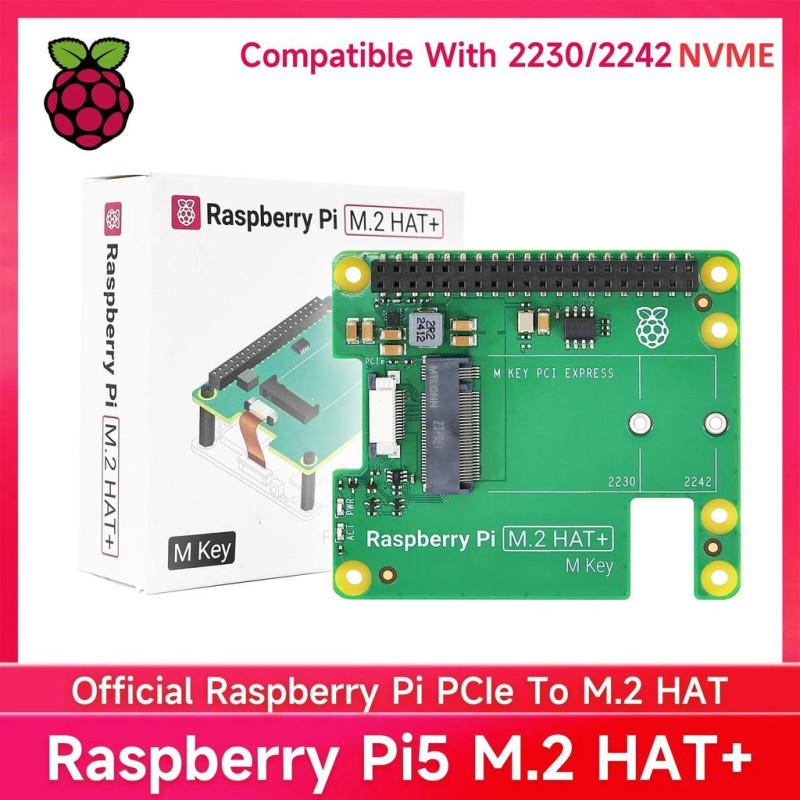

OFFICIAL RASPBERRY PI 5 M.2 HAT+

Give your Raspberry Pi 5 a boost with the M.2 HAT+.
Combine it with an AI module to create cutting-edge applications, or attach an NVMe drive for super fast boot and data transfer.

Compatibility :
---SSD NVME M.2 2230 Form Factor
---SSD NVME M.2 2242 Form Factor
---Raspberry Pi 5 Active Cooler Fan

Note :
Official Raspberry Pi 5 Case tidak fully fit dengan HAT ini, fan bawaan casing dan penutup casing sisi atas tidak dapat dipasang. Silahkan lihat/geser gambar

Order Compatible Case :
ABS Case :
METAL Case :

Order COMPATIBLE parts :
Active Cooler Fan :
Official Adaptor :
CAFF Adaptor :

Order NVME 2230 :
128GB (terinstall OS Raspberry) :
128GB (KOSONGAN / TIDAK terinstall OS) :

Order Raspberry Pi 5 :
RAM 2GB :
RAM 4GB :
RAM 8GB :
RAM 16GB :

FEATURES :

The M.2 HAT+ allows users to connect M.2-format PCIe and NVMe devices to the PCIe FPC connector on Raspberry Pi 5.
-- 4 Gbits/s PCIe 2.0 interface provides fast (~450Mbytes/s) data transfer to and from NVMe SSD drives and other PCIe accessories
-- Conforms to the HAT+ specification
-- Automatically detected by the latest Raspberry Pi software/firmware
-- Supplied with a 16mm stacking header and spacers/screws to enable the M.2 HAT+ to be fitted to a Raspberry Pi 5 with the Active Cooler in place

SPECIFICATIONS :

-- Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
-- Supports devices that use the M.2 M key edge connector
-- Supports devices with the 2230 or 2242 form factor
-- Capable of supplying up to 3A to connected M.2 devices
-- Includes power and activity LEDs
-- Conforms to the Raspberry Pi HAT+ specification
-- Supplied with ribbon cable, 16mm stacking header, threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral

NOTE :

Raspberry Pi 5 board is not included
