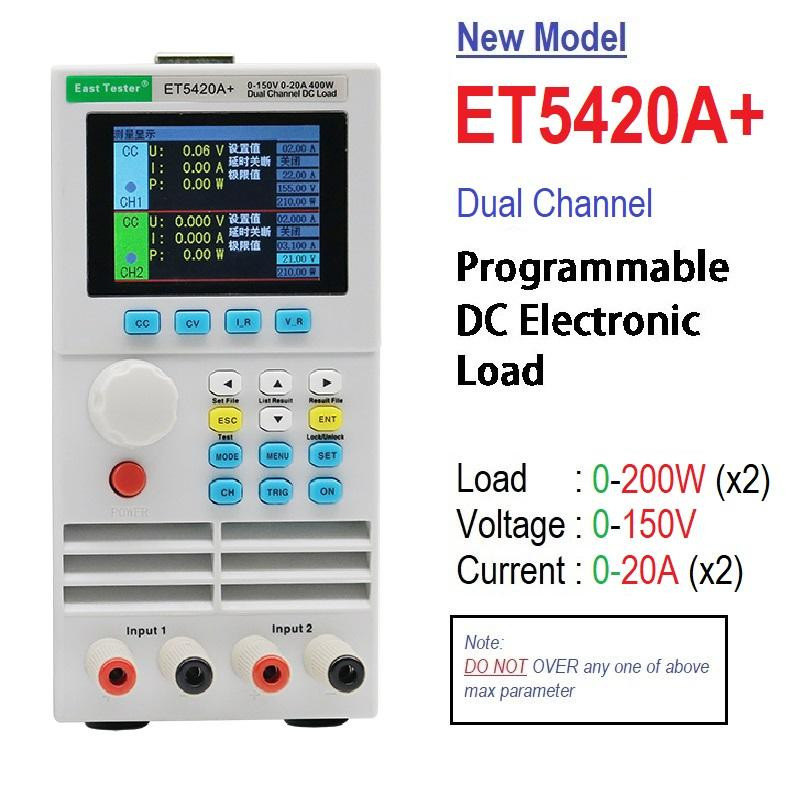

400W ET5420A Programmable DC Electronic Load 150V 2x20A Battery Tester
Rp4,354,000
Rp4,223,380
Save 3%
Tax excluded
SKU: 1944859428
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
DC Electronic Load
ET5420A+
---Dual Channels
---Max Load : 200W (x2) / 400W total for 2-channels
---Voltage Setting : 0-150V
---Current Setting : 0-20A (x2) / 40A total for 2-channels
Download PC Software : email us
================
SPECIFICATION
Brand : East Tester
MODEL : ET5420A+
Rated input :
--Power : 400W (Dual-Channel, 200W*2)
--Input voltage : 0-150V
--Input current : 0-40A(20A*2)
CV mode :
--Range : 0.1~19.999V, 0.1~150.00V
--Resolution : 1mV, 10mV
--Accuracy : ±(0.05%+0.02%FS)
CC mode :
--Range : 0~3.000A, 0~20.00A
--Resolution : 1mA, 10mA
--Accuracy : ±(0.05%+0.05%FS)
CR mode :
--Range : 0.05Ohm ~ 1kOhm, 1kOhm ~ 4.5kOhm
--Resolution : 10mOhm, 100mOhm
--Accuracy : ±(0.1%+0.5%FS)
CP mode :
--Range : 0~200W
--Resolution : 10mW
--Accuracy : ±(0.1%+0.5%FS)
Tran Test :
--Mode : CC, CV
--T1&T2 : 50ms~60s
Battery Test :
--Discharge mode : CC, CR
--Maximum discharge capacity : 9999Ah
--Resolution : 1mA, 10mA, 10mOhm, 100mOhm
Range of measurement :
Voltageread-back value :
--Range : 0~19.999V, 0 ~150.00V
--Resolution : 1mV, 10mV
--Accuracy : ±(0.05%+0.1%FS)
Currentread-back value :
--Range : 0~3.000A, 0~20.00A
--Resolution : 1mA, 10mA
--Accuracy : ±(0.05%+0.1%FS)
Powerread-back value :
--Range : 200W
--Resolution : 10mW
--Accuracy : ±(0.1%+0.5%FS)
Scope of protection :
--Over Voltage Protection(OV) : >21V OR >155V over voltage protection
--Over Current Protection(OC) : >3.1A or >22A over current protection
--Over Power Protection(OP) : 210W
--Over Temperature Protection : 85 DegC
================
1944859428
3800 g
