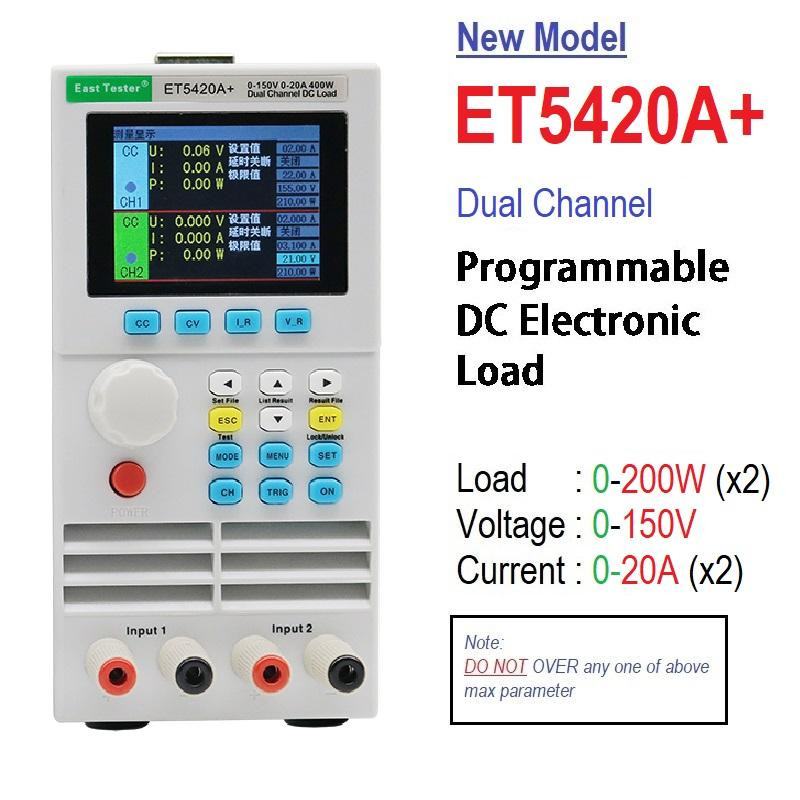

400W ET5420A Programmable DC Electronic Load 150V 2x20A Battery Tester

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

DC Electronic Load

ET5420A+
---Dual Channels
---Max Load : 400W (x2)
---Voltage Setting : 0-150V
---Current Setting : 0-20A (x2)

Download PC Software :

ET54 series single/double channel programmable dc electronic load, USES the high performance chip, high speed, high precision design, provide 1mV,1mA resolution, superior performance, can be widely applied to the charger, switching power supply, linear power supply, production test of all kinds of batteries and other industries, scientific research institutions such as the test research and development.

---

===

SPECIFICATION

Brand : East Tester
Model : ET5420A+
Channel No. : Dual channel

Rated input :
---power : 400W (2x200W)
---input voltage : 0-150V
---Input current : 0-20A (2x)

Constant voltage :
---range : 0.1~19.999V or 0.1~150.00V
---Resolution : 1mV or 10mV
---accuracy : +/-(0.05%+0.02%FS)

Constant current :
---range : 0~3.000A | 0~20.00A
---Resolution : 1mA or 10mA
---accuracy : +/-(0.05%+0.05%FS)

Constant power :
---range : 0~200W (2x)
---Resolution : 10mW
---accuracy : +/-(0.1% + 0.5%FS)

Resolution :
---Resolution : +(0.1%+0.5%FS)
---Accuracy : CC, CV
---Mode : 1ms~60s ; Resolution: 1ms

Dynamic test function :
---T1 amp;T2 : 0.1%+ 1ms
---Accuracy : 0.000~ 0.3Amicrosecond(Current 0~3.000A)
---Upward/downward slope : 0.000~1.5A/microsecond(Current 3. 000~40.00A)
---Discharge mode : CC, CR

Battery test function :
---Maximum Discharge Capacity : 9999Ah
---Resolution : 1mA, ,10mA , 10mQ , 100mQ

---

===
