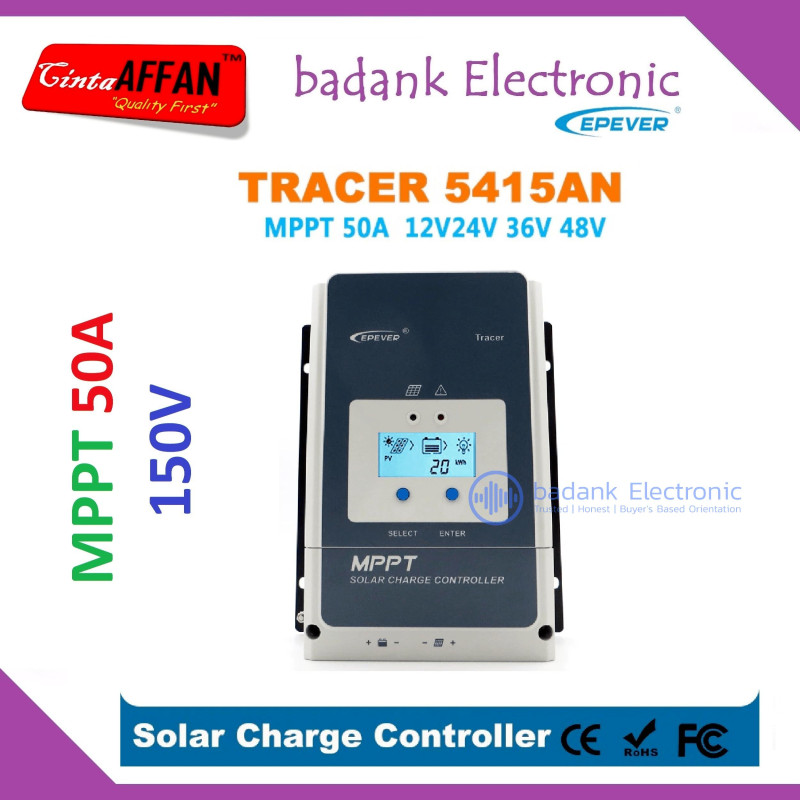

EPEVER Tracer 5415AN MPPT 50A 150V (12/24/36/48V) Solar Controller SCC

##############################

READY STOCK, SILAHKAN LANGSUNG ORDER

##############################

MPPT SOLAR CHARGE CONTROLLER 50A

Max PV 150V

BATTERY VOLTAGE 12V / 24V / 36V / 48V (Auto Detection)

EPEVER Model Tracer5415AN

SPESIFIKASI

Nominal System Voltage : 12/24/36/48VDC Auto

Battery Input Voltage Range : 8V~68V

Battery Type : Sealed(Default)/Gel/Flooded/User Defined

Battery fuse : 80A/58V

Rated charge power : 625W/12V 1250W/24V 1875W/36V 2500W/48V

Max. PV open circuit voltage : 150V

MPP Voltage Range : (Battery Voltage +2V)~108V

Tracking efficiency : 99.5%

Max. conversion efficiency : 98.3%

Full load efficiency : 97.8%

Temperature compensate coefficient : -3mV/C/2V(Default)

Self-consumption : 98mA/12V;60mA/24V;50mA/36V;46mA/48V

Grounding : Common negative grounding

Relay : Rated Value:5A/30VDC; Max. Value:0.5A/60VDC

RS485 interface : RS485(RJ45)

LCD backlight time : Default:60S,Range:0~999S(0S:the backlight is ON all the time)

Ambient temperature range : -25C~+60C(Derate above 45C)

LCD temperature range : -20C~+70C

Storage temperature range : -30C~+85C

Relative humidity range : 5% to 95% (N.C.)

Enclosure : IP20

Pollution degree : PD2

Dimension : 261x216x119mm

Mounting dimension : 180204mm

Mounting hole size : dia. 7

Terminal : 6AWG/16mm2

Recommended cable : 6AWG/16mm2

Safety : EN/IEC62109-1 EMC : EN61000-6-3/EN61000-6-1 FCC : 47 CFR Part 15, Subpart B ROHS : IEC62321-3-1
