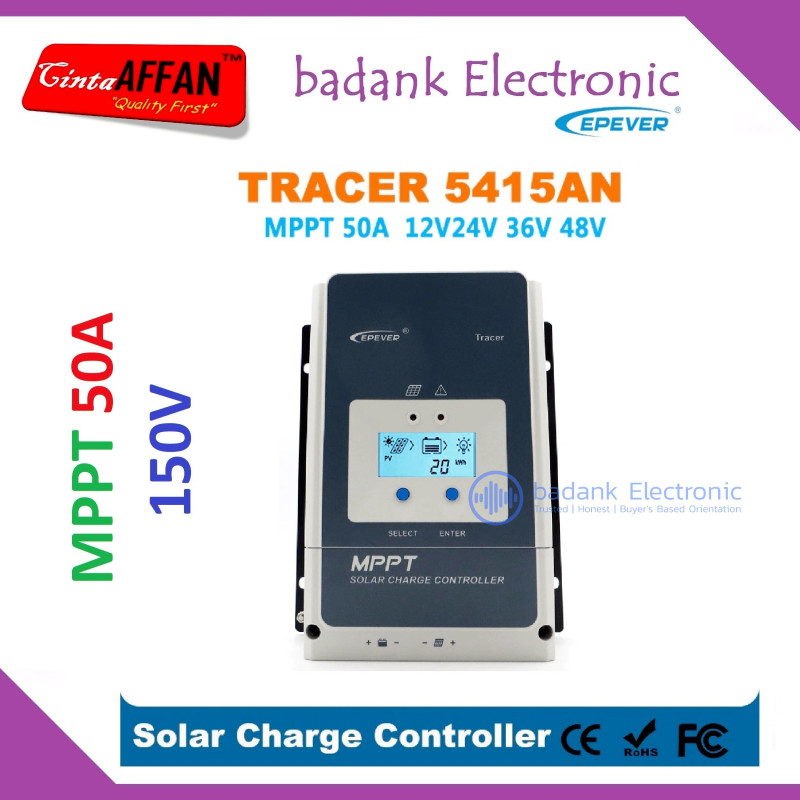

EPEVER Tracer 5415AN MPPT 50A 150V (12/24/36/48V) Solar Controller SCC
Rp3,294,000
Rp3,195,180
Save 3%
Tax excluded
SKU: 1749577384
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
MPPT SOLAR CHARGE CONTROLLER 50A
Max PV 150V
BATTERY VOLTAGE 12V / 24V / 36V / 48V (Auto Detection)
EPEVER Model Tracer5415AN
SPESIFIKASI
Nominal System Voltage : 12/24/36/48VDC Auto
Battery Input Voltage Range : 8V~68V
Battery Type : Sealed(Default)/Gel/Flooded/User Defined
Battery fuse : 80A/58V
Rated charge power : 625W/12V 1250W/24V 1875W/36V 2500W/48V
Max. PV open circuit voltage : 150V
MPP Voltage Range : (Battery Voltage +2V)~108V
Tracking efficiency : 99.5%
Max. conversion efficiency : 98.3%
Full load efficiency : 97.8%
Temperature compensate coefficient : -3mV/C/2V(Default)
Self-consumption : 98mA/12V;60mA/24V;50mA/36V;46mA/48V
Grounding : Common negative grounding
Relay : Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
RS485 interface : RS485(RJ45)
LCD backlight time : Default:60S,Range:0~999S(0S:the backlight is ON all the time)
Ambient temperature range : -25C~+60C(Derate above 45C)
LCD temperature range : -20C~+70C
Storage temperature range : -30C~+85C
Relative humidity range : 5% to 95% (N.C.)
Enclosure : IP20
Pollution degree : PD2
Dimension : 261x216x119mm
Mounting dimension : 180204mm
Mounting hole size : dia. 7
Terminal : 6AWG/16mm2
Recommended cable : 6AWG/16mm2
Safety : EN/IEC62109-1 EMC : EN61000-6-3/EN61000-6-1 FCC : 47 CFR Part 15, Subpart B ROHS : IEC62321-3-1
