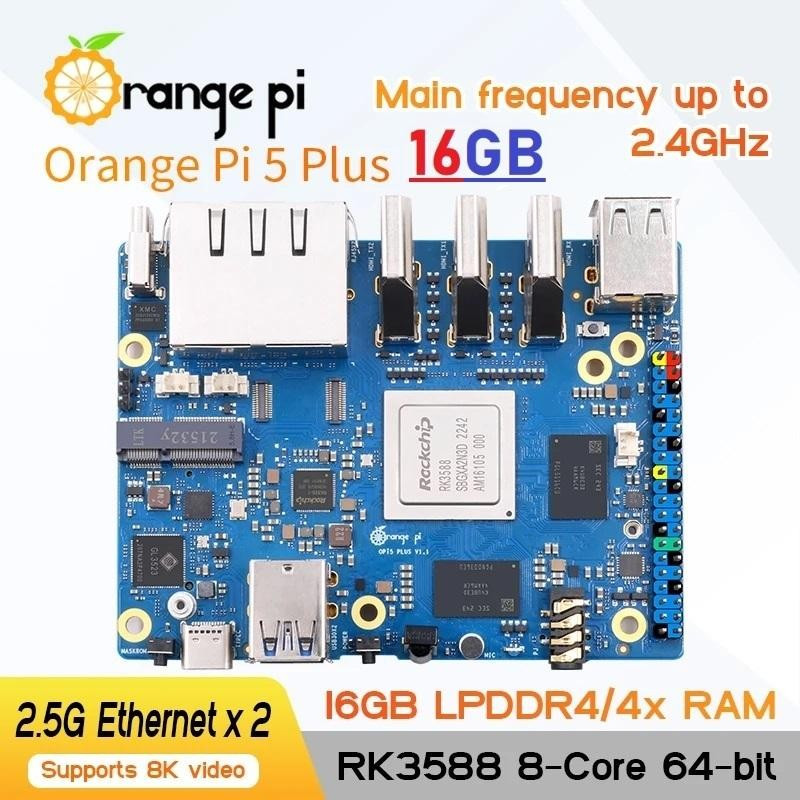

Orange Pi 5 Plus - 16GB RAM

Name: Orange Pi 5 Plus - 16GB RAM
Brand: badank Electronic
SKU: 12124155402
Price: 2861500 IDR
Availability: InStock

Rp2,950,000

Rp2,861,500 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

############################
READY STOCK, SILAHKAN LANGSUNG ORDER
############################

Orange Pi 5 Plus, 16GB LPDDR RAM

OFFICIAL OS :
- OpenWRT
- Orange Pi OS (Arch)
- Orange Pi OS (Droid)
- Ubuntu
- Debian
- Android

THIRD PARTY OS :
- BredOS
- Windows on Arm
- openFyde
- DietPi
- kali
- rocky-linux
- CentOS

Order Case :
Order Adaptor :

SPEC:

SoC : Rockchip RK3588 (8nm LP process)
CPU :
--- 8-core 64-bit processor
--- 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors
GPU :
--- Arm Mali-G610
--- Built-in 3D GPU
--- Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
NPU : Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
PMU : RK806-1
RAM : 16GB(LPDDR4/4x)
Memory :
--- QSPI Nor FLASH: 16MB/32MB
--- MicroSD card slot: up to 128GB
--- eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached
--- M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s
USB :
--- USB3.0 × 2
--- USB2.0 × 2
--- Type-C ×1
Video :
--- 2x HDMI 2.1 out up to 8k@60FPS
--- 1x Type-C with DP TX 1.4A,up to 8K@30FPS
--- 1x HDMI in with up to 4K@60FPS
--- 1 x MIPI DSI TX 4 Lane,up to 4K @60Hz
TP interface : 1x 6Pin FPC socket
Camera : 1XMIPI CSI 4 Lane
Audio : CODEC:ES8388
--- 1xAudio 3.5mm jack with mic
--- 1xMIC In
--- 1xHDMI 2.1 eARC
--- 1xSPK
Ethernet : 2xPCIe 2.5G LAN(RTL8125BG)
Expansion Port : 40Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO
PCIe M.2 M-KEY Socket : M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD
PCIe M.2 E-KEY Socket : M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported
Power Source : Support Type-C power supply, 5V@4A
