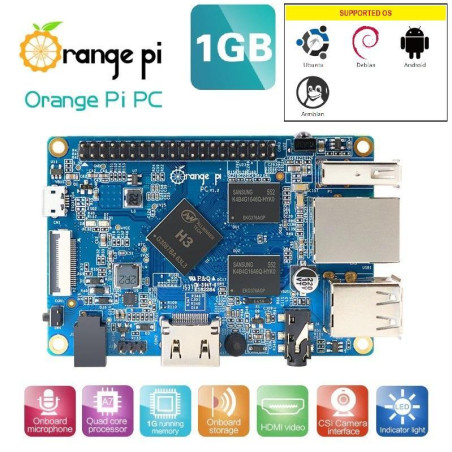

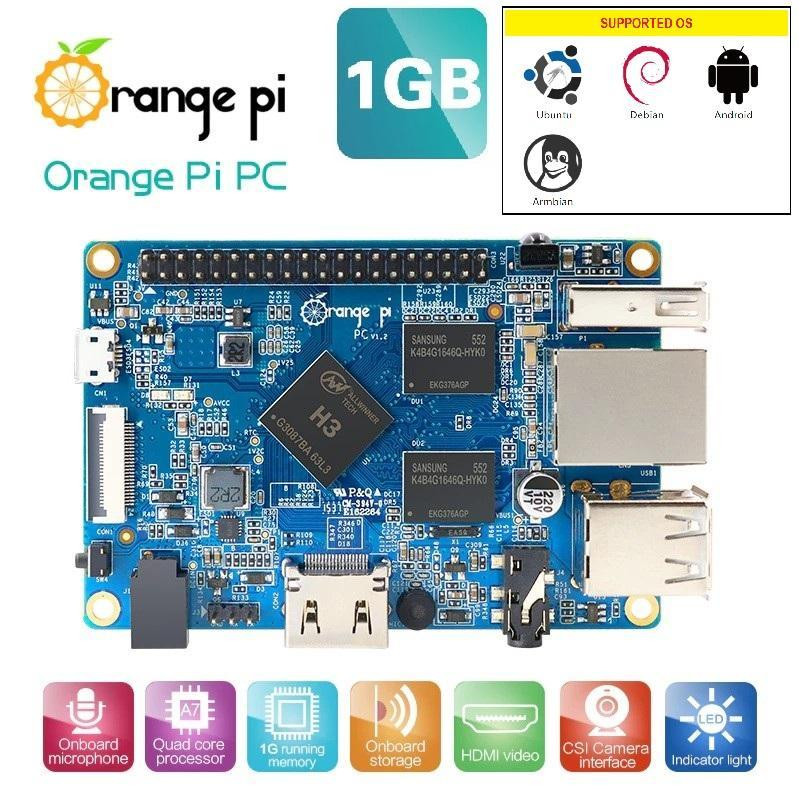

Orange Pi PC - 1GB CPU Allwinner H3 Quad-core Cortex-A7
Rp703,000
Rp681,910
Save 3%
Tax excluded
SKU: 6041217240
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
Orange Pi PC, 1GB DDR RAM
SUPPORTED OS (Operating System):
- Armbian
- Ubuntu
- Debian
- Android
HARDWARE SPECIFICATION:
CPU : H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU :
---Mali400MP2 GPU @600MHz
---Supports OpenGL ES 2.0
Memory (SDRAM) : 1GB DDR3 (shared with GPU)
Onboard Storage : TF card (Max. 32GB) / MMC card slot
Onboard Network : 10/100M Ethernet RJ45
Video Input :
---A CSI input connector Camera:
---Supports 8-bit YUV422 CMOS sensor interface
---Supports CCIR656 protocol for NTSC and PAL
---Supports SM pixel camera sensor
---Supports video capture solution up to 1080p@30fps
Audio Input : MIC
Video Outputs :
---Supports HDMI output with HDCP
---Supports HDMI CEC
---Supports HDMI 30 function
---Integrated CVBS
---Supports simultaneous output of HDMI and CVBS
Audio Output : 3.5 mm Jack and HDMI
Power Source : DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports : Three USB 2.0 HOST, one USB 2.0 OTG
Buttons : Power Button(SW4)
Low-level peripherals : 40 Pins Header
GPIO(1x3) pin : UART, ground.
LED : Power led & Status led
Key : IR input, POWER
Product size : 85 mm × 55mm
Weight : 38g
6041217240
