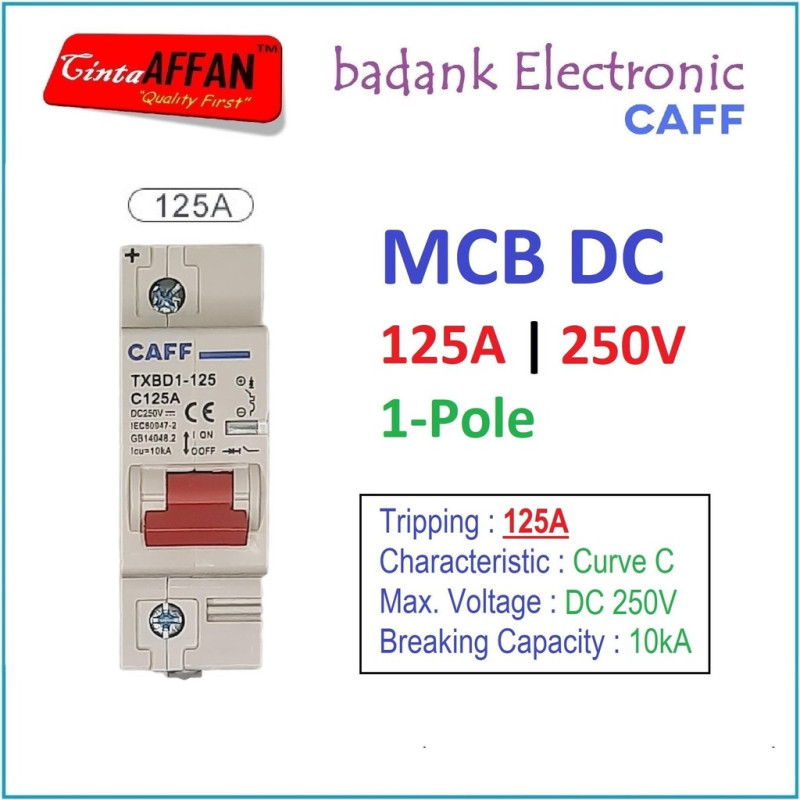

CAFF MCB DC C125 125A 250V 1P Circuit Breaker Solar PV Panel Surya PLTS
Rp77,000
Rp74,690
Save 3%
Tax excluded
SKU: 680518620
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
MCB DC 1P 250V
RATED CURRENT : 125A
APLIKASI :
--- Panel Surya, Solar Controller, Inverter
--- Battery
--- Electric Vehicle (Bike, Motor, Car)
--- DC Power Supply
--- Sumber/arus listrik DC lainnya
SPECIFICATIONS:
--- Brand : CAFF
--- Model : TXBD1-125
--- Max Voltage: DC 250V
--- Rating Current : 125A
--- Trip Characteristic Curve: C
--- Rated Breaking Capacity (Icu) : 10kA
--- Number of Pole : 1P
--- Standard : IEC60898 (80~125A)
--- Contact Position Indication: ON (RED) / OFF (GREEN)
--- Working ambient temperature: -10 ~ +40
--- Enclosed protective class: IP20
--- Electrical life: Not less than 8000 times
--- Mechanical life: Not less than 20000 times
--- Connecting Wire Size : Max 35mm2
