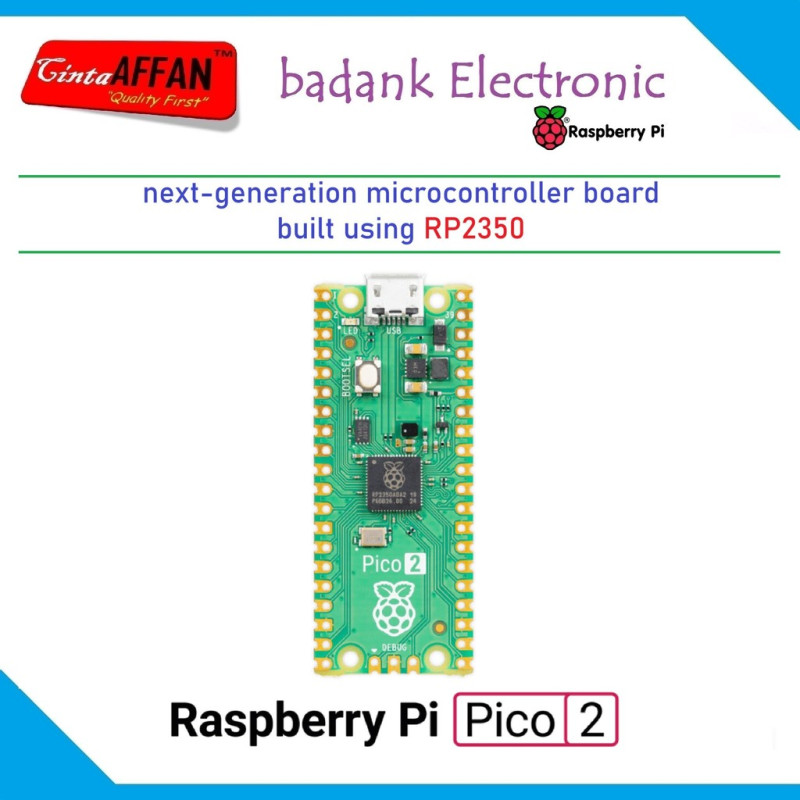

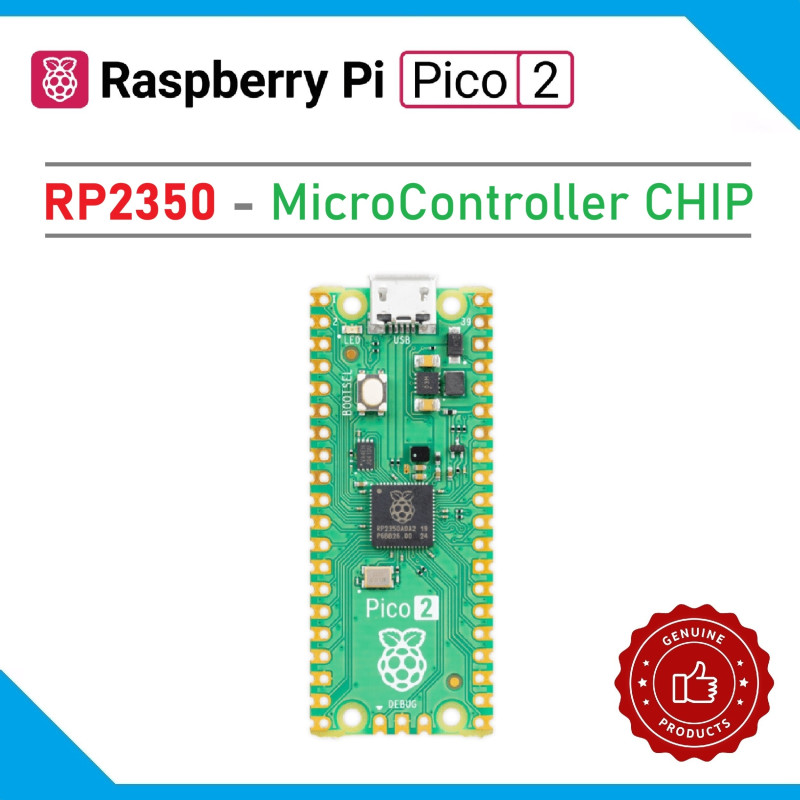

Raspberry Pi Pico 2 - RP2350 MCU Silicon

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

RASPBERRY Pi PICO 2

With a higher core clock speed, double the memory, more powerful Arm cores, optional RISC‑V cores, new security features, and upgraded interfacing capabilities, Raspberry Pi Pico 2 delivers a significant performance boost, while retaining compatibility with earlier members of the Raspberry Pi Pico series.

Programmable in C / C++ and Python, and with detailed documentation, Raspberry Pi Pico 2 is the ideal microcontroller board for enthusiasts and professional developers alike.

Order Adaptor :

Order Other Variants :

PICO :
PICO (with Header) :

PICO W :
PICO W (with Header) :

PICO 2 :
PICO 2 (with Header) :

PICO 2W :
PICO 2W (with Header) :

TECHNICAL SPECIFICATIONS:

Dual Arm Cortex-M33 or dual Hazard3 RISC-V processors @ 150MHz
520 KB on-chip SRAM
2.4GHz 802.11n wireless LAN and Bluetooth 5.2 (Raspberry Pi Pico 2 W only)
Software- and hardware-compatible with Raspberry Pi Pico 1
Drag-and-drop programming using mass storage over USB
Castellated module allows soldering direct to carrier boards
Robust and fully documented security features:
---ARM TrustZone for Cortex-M
---Optional boot signing, enforced by on-chip mask ROM, with key fingerprint in OTP
---Protected OTP storage for optional boot decryption key
---Global bus filtering based on Arm or RISC-V security/privilege levels
---Peripherals, GPIOs, and DMA channels individually assignable to security domains
--Hardware mitigations for fault injection attacks
--Hardware SHA-256 accelerator
2 × UART
2 × SPI controllers
2 × I2C controllers
24 × PWM channels
3 x ADC channels
1 × USB 1.1 controller and PHY, with host and device support
12 × PIO state machines
Open source C/C++ SDK, MicroPython support
Operating temperature -20°C to +85°C
Supported input voltage 1.8–5.5V DC
