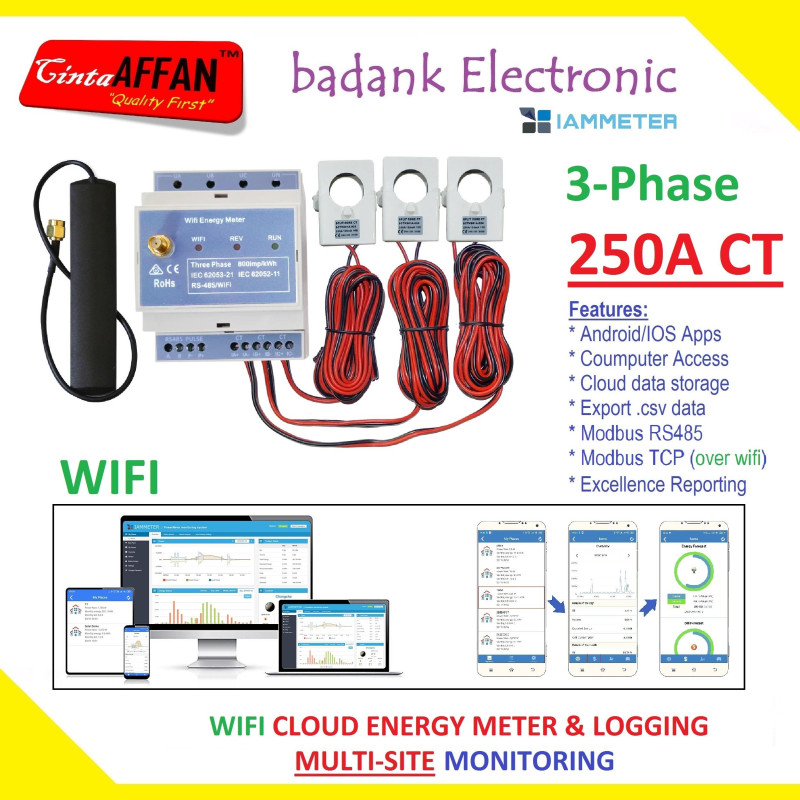

IAMMETER CLOUD 3-Phase WIFI Bidirectional Energy Meter CT 250A

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

ENERGY METER CLOUD MONITORING (3-SENSOR CT 250A)

INTERFACE :
---via ANDROID/IOS, APPS : IAMMETER
---via Laptop/computer (web browser)

WEM3080T (3-sensor CT 250A) :
---Aplikasi untuk 1-titik pengukuran listrik 3-fasa 380V (4-wire / R, S, T, N)
---Aplikasi untuk 3-titik pengukuran listrik 1-fasa 220V (2-wire / L, N)

Harga SUDAH TERMASUK cloud storage fee lifetime period.

KEY FEATURES
---Real-time energy monitoring via your Wi-Fi network
---Simply one-key Wi-Fi setup to connect to your Wi-Fi network
---Enterprise-class performance, suitable for domestic, commercial, industrial use and solar system
---Cloud service and Mobile app is available
---Support local monitoring via LAN or uploading the data to your specified server
---4-pole DIN-rail mounting fits neatly in the meter box

GENERAL SPECIFICATION

Standard package :
---1. Wi-Fi Energy Meter (WEM3080T) x 1
---2. Split-core Current Transformer 250A x 3
---3. 2.4G Wi-Fi Antenna x 1
Power Supply : Built-in universal power supply
Communication : Built-in Wi-Fi
Antenna : External 2.4G antenna with SMA male
Reporting interval : 1-5 minutes interval, typically 1 minute
Report contents : Active Energy (Forward and Reverse), Active Power, Voltage, Current, Frequency
Configuration :
---1. Wi-Fi access point and webpage for setting SSID and password
---2. Mobile App for setting SSID and password
Monitoring Scenarios :
---1. Monitor on Iammeter Cloud
---2. Monitor locally on your PC via WLAN (Http get interface)
---3. Integrate with third party server, such as your own server, PVoutput and HomeAssistant (TCP/SSL interface)

ELECTRICAL CHARACTERISTIC
Input Voltage : 80-277 V AC (Phase Voltage), 140-480 V AC (Line Voltage)
Measurement Accuracy : 1.0%, Class-1 (Voltage, Current, Active Power, Energy)
Typical power consumption : 2W(220VAC input)
