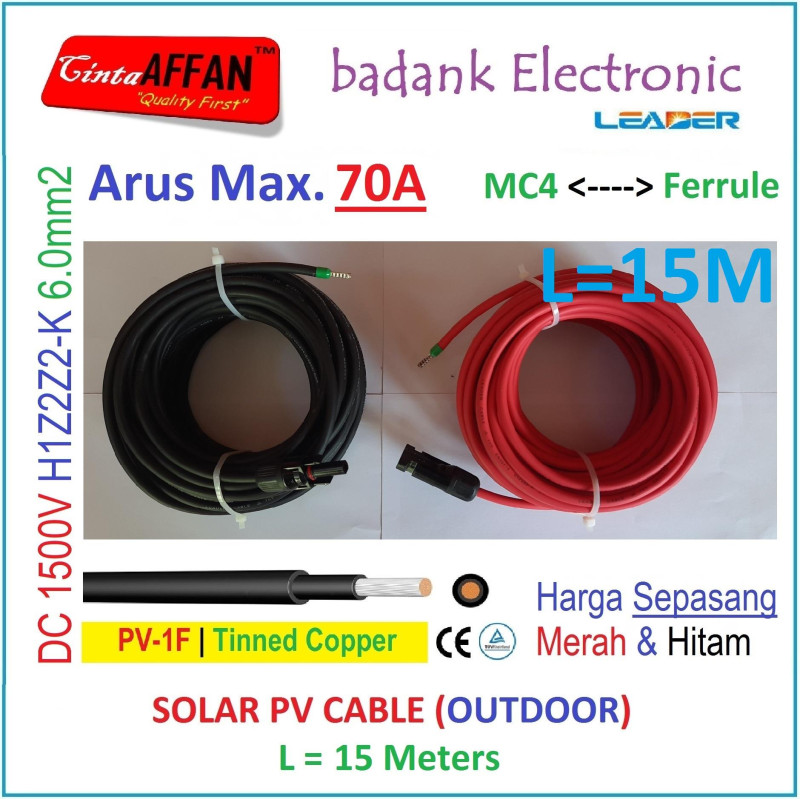

MC4 --- Ferrule PV Cable 1500V H1Z2Z2-K 6mm2 Tinned copper L15M
Rp597,000
Rp579,090
Save 3%
Tax excluded
SKU: 1292902727
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
################################## READY STOCK, SILAHKAN LANGSUNG ORDER ################################## KABEL PANEL SURYA OUTDOOR H1Z2Z2-K / PV-1F Spesifikasi: - Jenis Kabel : H1Z2Z2-K - Kabel ukuran 6 mm2 - Warna kabel Merah dan Hitam (Sepasang) - Arus maksimum 70A - Dengan konektor MC4 dan ferrule lonjong (terpasang pada ujung ujung kabel) - Panjang kabel : 15 meter Note: - Harga yg tertera adalah sapasang kabel merah dan hitam - Produk sebagaimana terlihat pada gambar Aplikasi: - Sambungan antara Panel Surya (MC4) ke Solar Controller - Sambungan antara Panel Surya (MC4) ke Solar MCB DC Features: - Double-insulated,Insulation cross-linked Polyolefin - Stable conduction and reduced maintenance costs - Anticipate service life -25 years outdoors - RoHS and CE amp; TV(EN50618 H1Z2Z2-K) Spesifikasi: - Standard : EN50618 - Construction : H1Z2Z2-K 6mm2 - Conductor Size : 6mm2 - Conductor Material : Tinned copper wire - Insulation Material : XLPO - Voltage Rating : DC1500V - Temperature Rating : -40~90 - Dielectric Strength : AC-6.5kV/5min - Spark Test : AC-10kV/In the air - Conductor resistance : 8.65KM Max at20 - Weathering/UV-resistance : 720hNo cracking - Thermal endurance properties : 25 Years - Ozone resistance : 252*24h No cracking - Cold bend test : -402*16h No cracking - Cold impact test : -40*16h/1000g100mm No cracking - Flame test : IEC 60332
1292902727
