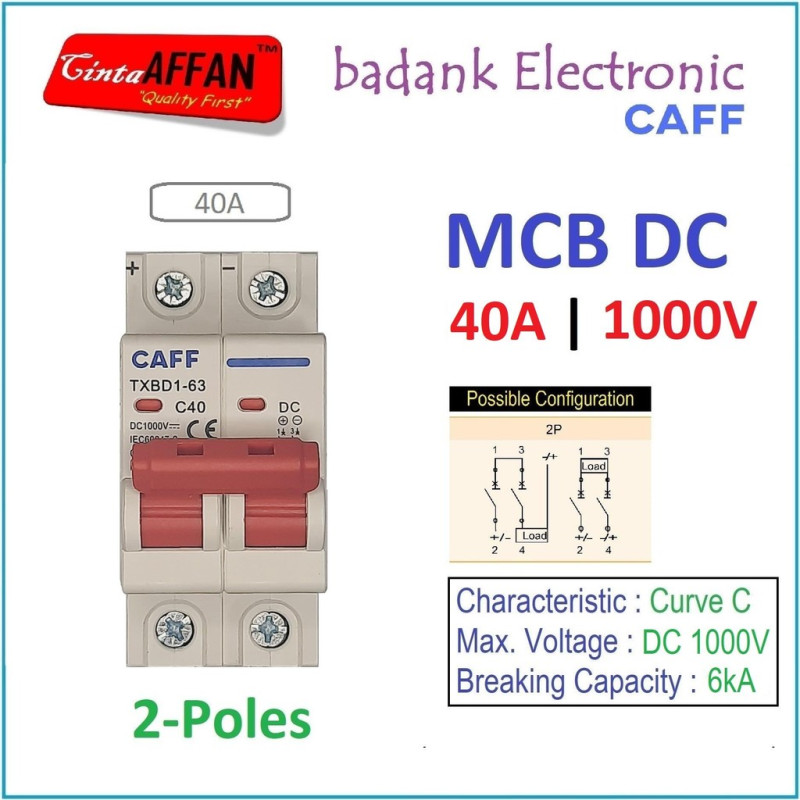

CAFF MCB DC 2P 1000V C40 40A Circuit Breaker Solar PV Panel Surya PLTS

Name: CAFF MCB DC 2P 1000V C40 40A Circuit Breaker Solar PV Panel Surya PLTS
Brand: badank Electronic
SKU: 5703052955
Price: 64990 IDR
Availability: InStock

Rp67,000

Rp64,990 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

MCB DC 2P 1000V
RATED CURRENT : 40A

APLIKASI :
--- Panel Surya, Solar Controller, Inverter
--- Battery
--- Electric Vehicle (Bike, Motor, Car)
--- DC Power Supply
--- Sumber/arus listrik DC lainnya

SPECIFICATIONS:
--- Brand : CAFF
--- Model : TXBD1-63
--- Max Voltage: DC 1000V
--- Rating Current : 40A
--- Trip Characteristic Curve: C
--- Rated Breaking Capacity (Icu) : 6kA
--- Number of Pole : 2P
--- Standard : IEC60898 (3~63A)
--- Contact Position Indication: ON (RED) / OFF (GREEN)
--- Working ambient temperature: -10 ~ +40
--- Enclosed protective class: IP20
--- Electrical life: Not less than 8000 times
--- Mechanical life: Not less than 20000 times
--- Connecting Wire Size : Max 16mm2
