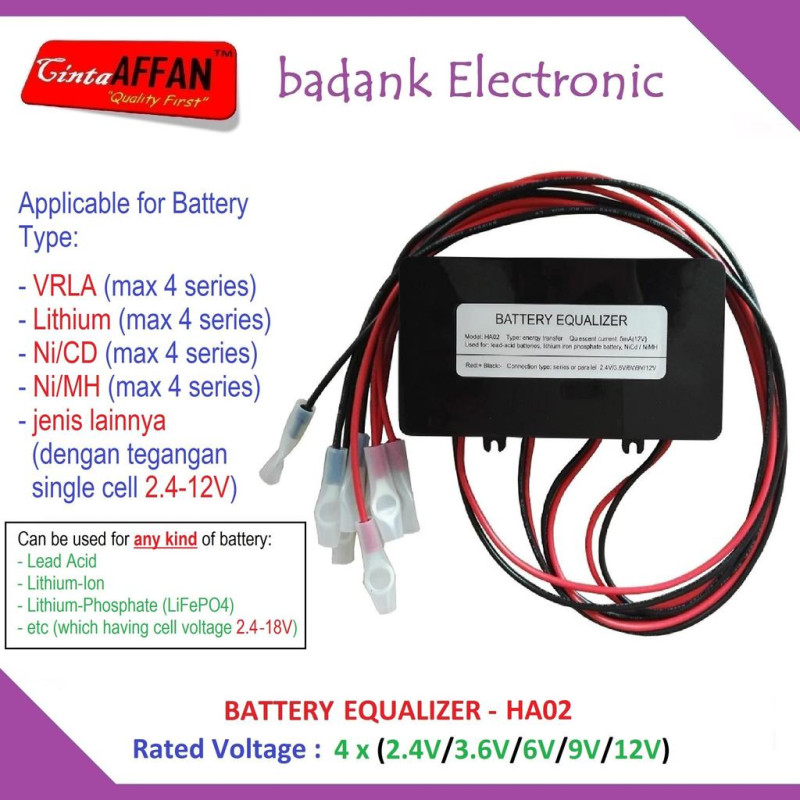

HA02 Battery Equalizer Balancer VRLA Lithium NiCD NiMH Solar Cell Aki
Rp665,000
Rp645,050
Save 3%
Tax excluded
SKU: 1036270658
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
DAPAT DIGUNAKAN UNTUK SEMUA JENIS BATTERY
(dengan cell-voltage kurang dari 18V)
HA02 battery equalizer for 4 X 6V 4 X 12V lead acid battery 4 X 3.7V Lithium battery system
INSTALLATION
Connect it as the following order:
1. Red cable connect positive (+) pole. Black cable connect negative (-) pole
2. Connect the batteries as the pictures.
3. You can connect all (+) pole firstly, and then (-) pole to avoid short circuits.
4. AVOID SHORT-CIRCUIT, it can broke the balancer.
APPLICATION:
Battery equalizer HA02 can be used for various kinds of batteries (single battery voltage from 2.4V to 12V) connected in series) HA02 battery equalizer is energy transfer type equalizer, it can compensate for batteries with two sides. The equalizer starts to work when there are 10mV between two batteries. The current will flow from a higher voltage to low voltage,eventually reach equilibrium. It can connect with battery system with 24 hours , to keep the system energy balance automatically, no need manual maintenance.
TECHNICAL DATA:
Battery nominal voltage : 4*(2.4V/3.6V/6V/9V/12V)
Battery max voltage : 18V on each cell
Optimizing current : 0-10A (balance current is based one batteries voltage difference)
Quiescent current : 5mA(12V) 1.2mA(2.4V)
Dimensions : 62*124*27 mm
Protection : Reverse polarity protection
Under voltage lock out : 1.8V
1036270658
