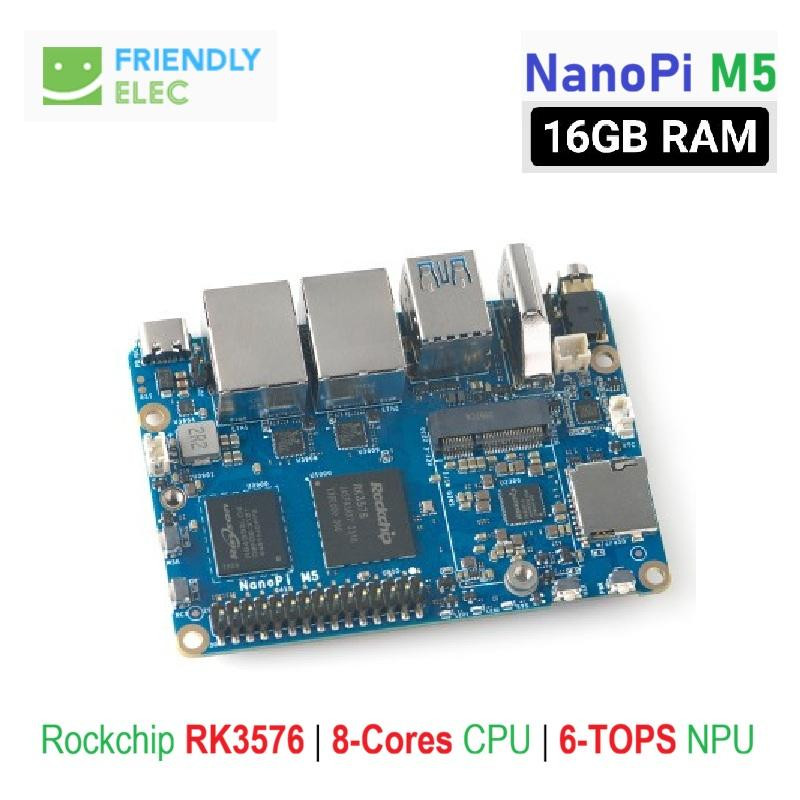

NanoPi M5 - 16GB RAM with Rockchip RK3576 8-Cores CPU 6-TOPS NPU AI Performance
Rp4,611,000
Rp4,472,670
Save 3%
Tax excluded
SKU: 12133837663
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
NanoPi M5 - 16GB RAM
Note : UNIT BOARD ONLY
OS Support :
-Alpine Linux
-Android 14 Tablet
-Android 14 TV
-Buildroot
-Debian 12 Core
-Debian 11 Desktop
-FriendlyWrt 21.02
-FriendlyWrt 23.05
-FriendlyWrt 24.10
-OpenMediaVault
-Proxmox VE
-Ubuntu 20.04 Desktop
-Ubuntu 24.04 Core
-Ubuntu 24.04 Desktop
TECHNICAL SPECIFICATIONS:
SoC: Rockchip RK3576
CPU: Octa-core ARM processor with 4× Cortex-A72 cores and 4× Cortex-A53 cores
GPU: ARM Mali-G52 MC3, supports OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2, and OpenCL 2.0
VPU: 8K@30fps H.265/VP9 video decoder, 4K@60fps video encoder
NPU: 6 TOPS*@INT8 supports INT4, INT8, INT16, FP16, BF16, TF32 mixed operation
RAM: 16GB LPDDR5 Flash
UFS2.0 (optional)
16MB SPI Nor Flash
Network:
2x 1Gbps Ethernet
Optional M.2 SDIO Wi-Fi
USB: Two USB 3.2 Gen 1 Type-A portsM.2 Connectors
one M.2 M-Key connector with PCIe 2.1 x1 for SSDs
one M.2 E-KEY SDIO connector
microSD: support UHS-IVideo input:
2x 4-lane MIPI-CSI V1.2
Video output:
1x Standard HDMI output port
support HDMI1.4 and HDMI2.0 operation
Support up to 10-bit Deep Color modes
Support up to 1080p@120Hz and 4096x2304@60Hz
Support 3-D video formats
1x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1
Audio:
1x 3.5mm jack for stereo headphone output
1x 2.0mm PH-2A connector for analog microphone input
GPIO:
30-pin 2.54mm header connector
up to 2x SPIs, 4x UARTs, 3x I2Cs, 1x SPDIFs, 5x PWMs, 20x GPIOs
Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bpsLEDs: 3 x GPIO Controlled LED (SYS, LED1, LED2)others:
2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Buttons: MASK, User, Recovery, Power
Boot Mode Switch
Power-On Mode Jumper
One 5V Fan connector
Power supply: USB-C, supports PD and DC, 6V~20V
