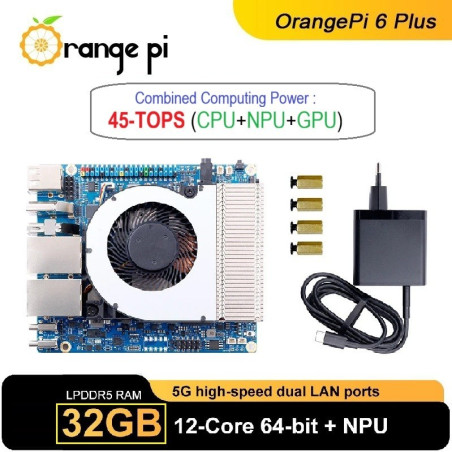

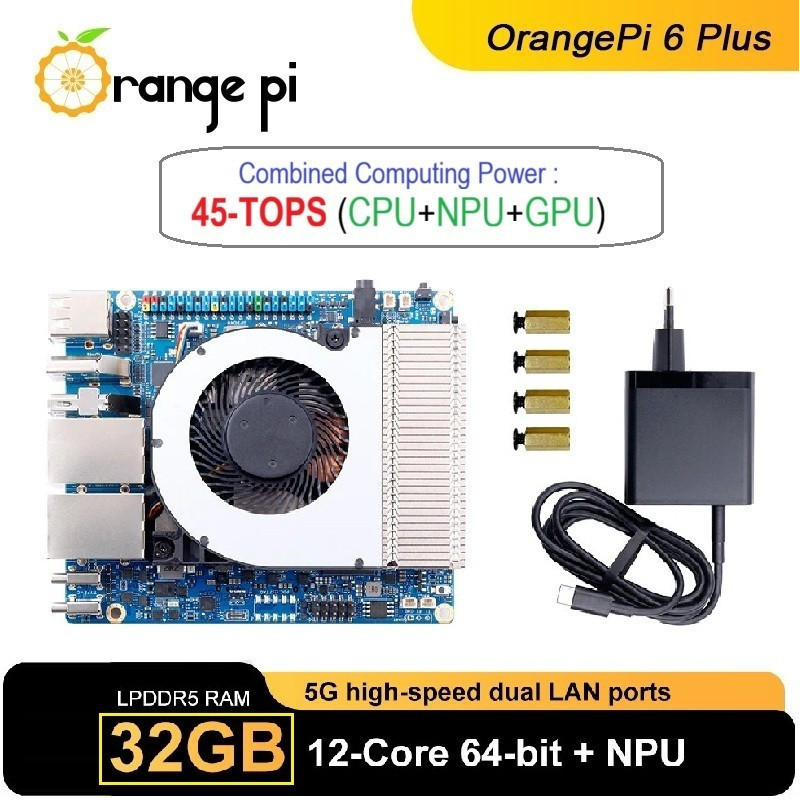

Orange Pi 6 PLUS 32GB RAM 12-Core CPU 45-TOPS AI Computing Power Integrated Cooler Fan 100W Power Supply

Name: Orange Pi 6 PLUS 32GB RAM 12-Core CPU 45-TOPS AI Computing Power Integrated Cooler Fan 100W Power Supply
Brand: badank Electronic
SKU: 6745150073
Price: 7040260 IDR
Availability: InStock

Rp7,258,000

Rp7,040,260 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

ORANGE PI 6 PLUS (RAM 32GB)

* 12-Core CPU
* 45-TOPS AI Computing Power (CPU+NPU+GPU)
* Integrated Cooling Fan
* Included Power Supply 20V 100W

Orange Pi 6 Plus adopts CIX CD8180/CD8160 SoC, built-in 12-core 64-bit processor + NPU processor, integrated graphics processor, equipped with 16GB/32GB /64GB LPDDR5, and provides two M.2 KEY-M interfaces 2280 for NVMe SSD,as well as SPI FLASH and TF slots to meet the needs of fast read/write and high-capacity storage; It is equipped with 45 Tops combined AI computing power (CPU+NPU+GPU) to support a variety of end-side large-model applications and a rich end-side AI scene

HARDWARE PARAMETERS :
CPU : 12-core 64-bit processor
NPU : 28.8Tops
GPU : Integrated graphics processor
Combined Computing Power : 45TOPS (CPU+NPU+GPU)
RAM (LPDDR5 : 128-bit x 32) : 16GB / 32GB /64GB
Storage Expansion :
• SPI FLASH: 64Mbit
• NVME SSD (PCIe 4 lane, M.2 KEY-M interface 2280) *2
• TF slot
Wi-Fi Module : M.2 KEY-E socket
PCIE Ethernet : 5G Ethernet*2
USB :
• USB 3.0 HOST *2
• USB2.0*2
• Reserved USB 2.0 9-pin socket
• USB full-function Type-C 3.0 HOST*2
Camera Interface : 2*4-lane MIPI CSI camera interface
Display Interface :
• 1*DP1.4 4K@120HZ
• 2*TYPE-C DP
• 1*HDMI1.4 4K@60HZ
• 1*eDP 4K@60HZ
Audio : 3.5mm headphone jack audio input/output, speakers*2, analog MIC*1
TYPE-C Port Power Supply : Type-C PD 20V IN*2, standard 100W
Expansion Interface : 40-pin function expansion interface, supporting the following interface types:
GPIO, UART, I2C, SPI, PWM
Indicator Light : Power-on indicator, system indicator, battery charging indicator
Button : 1* Power button, 1* BOOT button, 1* RESET button
Fan Interface : 1* Fan connector with PWM control
Reserved Interface : Board-to-board battery connector; 2-pin RTC connector
Power Adapter : Type-C PD 20V input, standard 100W
Operating System : Debian, Ubuntu, Android, Windows, ROS2
Appearance Dimensions : 115*100mm
