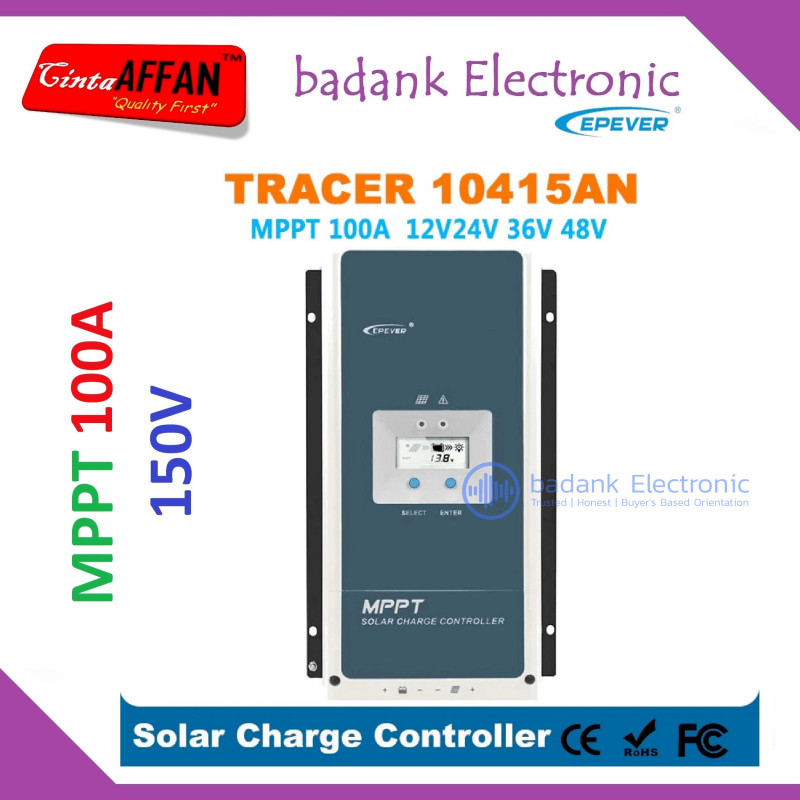

EPEVER Tracer 10415AN MPPT 100A 150V (12/24/36/48V) Solar Controller
Rp6,116,000
Rp5,932,520
Save 3%
Tax excluded
SKU: 5184265341
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################
MPPT SOLAR CHARGE CONTROLLER 100A Max PV 150V BATTERY VOLTAGE 12V / 24V / 36V / 48V (Auto Detection) EPEVER Model Tracer10415ANSPESIFIKASI
========== Nominal System Voltage : 12/24/36/48VDC Auto Battery Input Voltage Range : 8V~68V Battery Type : Sealed(Default)/Gel/Flooded/User Defined Battery fuse : 80A/58V Rated charge power : 1250W/12V 2500W/24V 3750W/36V 5000W/48V Max. PV open circuit voltage : 150V MPP Voltage Range : (Battery Voltage +2V)~108V Tracking efficiency : =99.5% Max. conversion efficiency : 98.3% Full load efficiency : 97.6% Temperature compensate coefficient : -3mV/°C/2V(Default) Self-consumption : 98mA/12V;60mA/24V;50mA/36V;46mA/48V Grounding : Common negative grounding Relay : Rated Value:5A/30VDC; Max. Value:0.5A/60VDC RS485 interface : RS485(RJ45) LCD backlight time : Default:60S,Range:0~999S(0S:the backlight is ON all the time) Ambient temperature range : -25°C~+60°C(Derate above 45°C) LCD temperature range : -20°C~+70°C Storage temperature range : -30°C~+85°C Relative humidity range : 5% to 95% (N.C.) Enclosure : IP20 Pollution degree : PD2 Dimension : 394×242×143mm Mounting dimension : 300×230mm Mounting hole size : dia. 7 Terminal : 2AWG/35mm2 Recommended cable : 2AWG/35mm2 Safety : EN/IEC62109-1 EMC : EN61000-6-3/EN61000-6-1 FCC : 47 CFR Part 15, Subpart B ROHS : IEC62321-3-1
