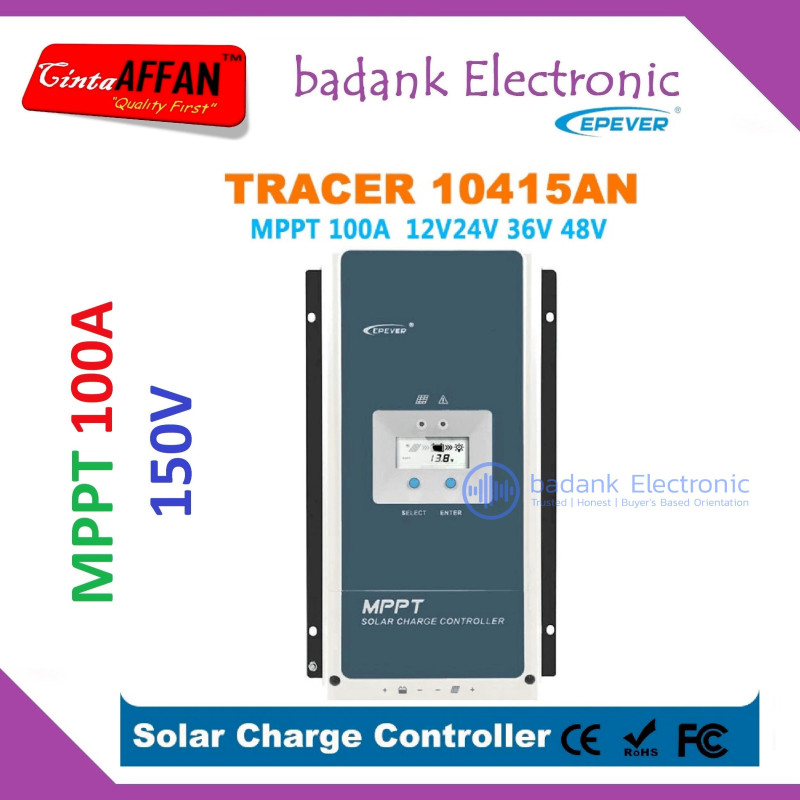

EPEVER Tracer 10415AN MPPT 100A 150V (12/24/36/48V) Solar Controller

##################################

READY STOCK, SILAHKAN LANGSUNG ORDER

##################################

MPPT SOLAR CHARGE CONTROLLER 100A Max PV 150V BATTERY VOLTAGE 12V / 24V / 36V / 48V (Auto Detection) EPEVER Model Tracer10415ANSPESIFIKASI

---

========== Nominal System Voltage : 12/24/36/48VDC Auto Battery Input Voltage Range : 8V~68V Battery Type : Sealed(Default)/Gel/Flooded/User Defined Battery fuse : 80A/58V Rated charge power : 1250W/12V 2500W/24V 3750W/36V 5000W/48V Max. PV open circuit voltage : 150V MPP Voltage Range : (Battery Voltage +2V)~108V Tracking efficiency : =99.5% Max. conversion efficiency : 98.3% Full load efficiency : 97.6% Temperature compensate coefficient : -3mV/°C/2V(Default) Self-consumption : 98mA/12V;60mA/24V;50mA/36V;46mA/48V Grounding : Common negative grounding Relay : Rated Value:5A/30VDC; Max. Value:0.5A/60VDC RS485 interface : RS485(RJ45) LCD backlight time : Default:60S,Range:0~999S(0S:the backlight is ON all the time) Ambient temperature range : -25°C~+60°C(Derate above 45°C) LCD temperature range : -20°C~+70°C Storage temperature range : -30°C~+85°C Relative humidity range : 5% to 95% (N.C.) Enclosure : IP20 Pollution degree : PD2 Dimension : 394×242×143mm Mounting dimension : 300×230mm Mounting hole size : dia. 7 Terminal : 2AWG/35mm2 Recommended cable : 2AWG/35mm2 Safety : EN/IEC62109-1 EMC : EN61000-6-3/EN61000-6-1 FCC : 47 CFR Part 15, Subpart B ROHS : IEC62321-3-1

---
