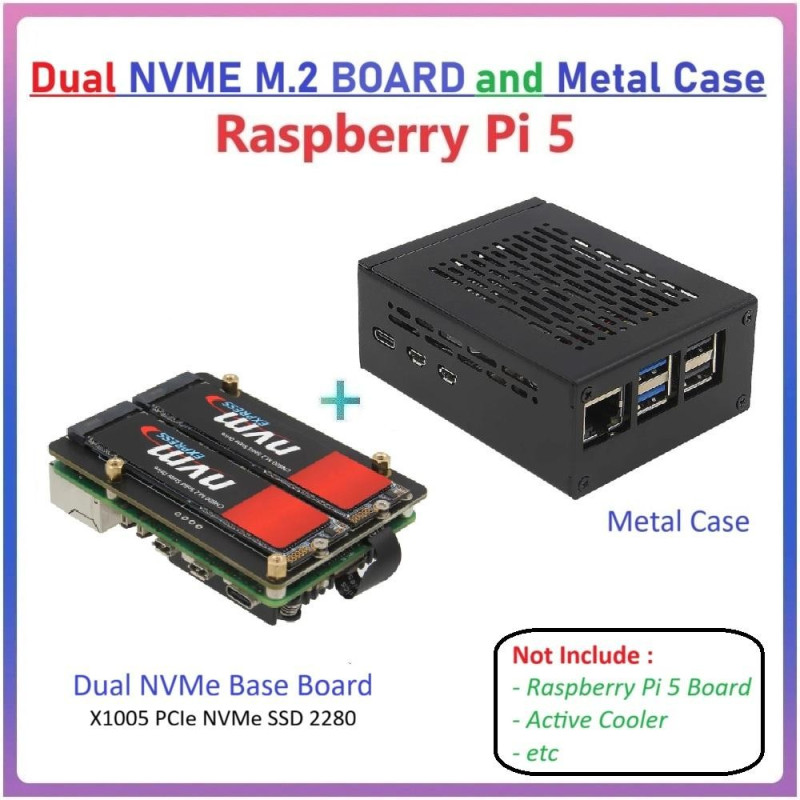

SUPTRONICS X1005 Dual NVMe SSD Bottom Shield with METAL CASE for Raspberry Pi 5

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

DUAL SSD NVME M.2 BOARD / SHIELD / HAT for Raspberry Pi 5
BOTTOM SHIELD
WITH METAL CASE

Compatible for :
-- NVME M.2 2230
-- NVME M.2 2242
-- NVME M.2 2260
-- NVME M.2 2280

Order Raspberry Pi 5 :
RAM 2GB :
RAM 4GB :
RAM 8GB :
RAM 16GB :

Order SSD NVME 2280 (sudah terinstall OS Raspberry) :
NVME 128GB :
NVME 256GB :
NVME 512GB :
NVME 1TB :
NVME 2TB :

Order ADAPTOR 27W :
Official Adaptor (BLACK) :
CAFF Adaptor :

OVERVIEW :
Introducing the X1005 NVMe dual SSD shield, designed to provide a seamless and high-speed storage solution for your Raspberry Pi 5. Its sleek and compact design enables easy attachment of two multiple M.2 SSD lengths (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 5. With its PCIe 2.0 interface, you can experience data transfer rates of up to 5Gbps, allowing you to effortlessly transfer large amounts of data within seconds.

FEATURES :
- Ideal PCIe storage solution for Raspberry Pi 5 - Dua M.2 NVMe SSD Shield
- Supports a total of 8TB storage capacity (4TB+4TB) with M.2 NVMe solid-state drives
- Accommodates two various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
- Supports PCIe 2.0 5Gbps for speedy data transfer and super-fast boot
- Fully compatible with the Raspberry Pi official active cooler
- LED indicators in blue display power and drive status
- Features an integrated high-performance PCIe packet switch
- Equipped with two high-efficiency DC/DC step-down converters, delivering a maximum of 6A to power your SSDs
- Designed to be attached on bottom, allows using your favorite HATs alongside it
- Powering via both pogo pins and FFC, ensuring sufficient power supply without any worries

SPECIFICATIONS :
Power supply : 5Vdc +/-5% power via pogo pins & FFC, converted to 3.3V max 6A to power the SSDs
Ports & Connectors : PCIe connector - 16-pin pitch0.5mm, SSD connector - M.2 KEY-M 67P
PCIe cable length : 37mm x2
PCB Size : 86.5mm x 60mm

PACKING LIST
- X1005 V1.0 NVMe shield x1
- PCIe FFC 37mm x1
- Screw pack x1
1 x Metal Case Geekworm P580 and Its Accessories
