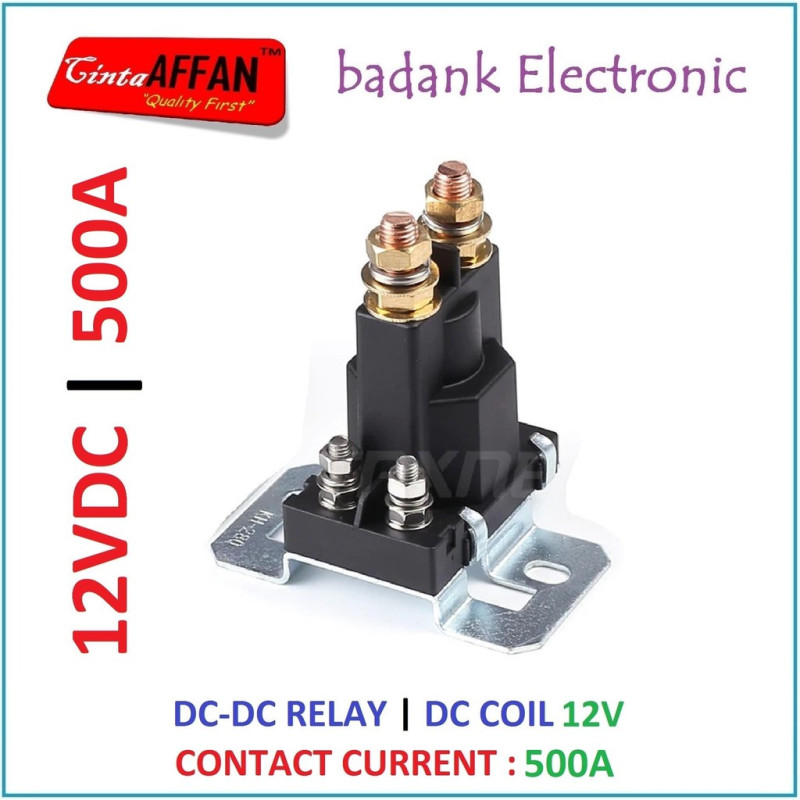

COIL 12V DC-DC Relay 500A Automotive Heavy Duty High Current Starting

Name: COIL 12V DC-DC Relay 500A Automotive Heavy Duty High Current Starting
Brand: badank Electronic
SKU: 2748215028
Price: 208550 IDR
Availability: InStock

Rp215.000

Rp208.550 Hemat 3%

Termasuk pajak

Kebijakan Keamanan

Kami melindungi informasi pribadi Anda dengan langkah keamanan yang tepat untuk mencegah akses tanpa izin, penyalahgunaan, atau pengungkapan.

Kebijakan Pengiriman

Pesanan diproses dan dikirim secepat mungkin. Waktu pengiriman dapat berbeda tergantung tujuan, kurir, dan ketersediaan produk.

Kebijakan Pengembalian

Jika Anda menerima barang rusak, cacat, atau tidak sesuai, silakan hubungi kami segera. Pengembalian atau penukaran mengikuti ketentuan dan batas waktu yang berlaku.

Keterangan
Detail produk

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

DC-DC RELAY Coil / Control Voltage : 12V

STARTING/SURGE LOAD (5ms):
---Max Contact Current : 500A (@12V Contact Voltage)
---Max Contact Load : 6000W

CONTINOUS LOAD :
---Max Contact Current : 200A (@12V Contact Voltage)
---Max Contact Load : 2400W

Note: The contact current capacity will reduced alongside with the increase of the contact voltage.

@12VDC Contact Voltage --> Max Contact Surge Current is 500A
@24VDC Contact Voltage --> Max Contact Surge Current is 250A
@48VDC Contact Voltage --> Max Contact Surge Current is 125A
@100VDC Contact Voltage --> Max Contact Surge Current is 60A
@200VDC Contact Voltage --> Max Contact Surge Current is 30A

100% brand new and high quality

FEATURES:
Durable amp; Firm amp; Stable
Contact Load: High Power
Sphere of application: solar inverter, construction vehicles, cars, and other large vehicles

SPECIFICATION:

COIL SIDE:
---Nominal Voltage : 12V DC
---Pickup Voltage : 8V DC
---Dropout Voltage: 1.2V DC
---Maximum Voltage : 15.5V DC
---Current Consumption : 0.4A / 4.8W (Max)
---Coil Resistant : 316 Ohms

CONTACT SIDE:
---Contact material : AgSn0_27In_20_33
---Contact form : 1H(1A)
---Contact Ratings : 500A
---Contact Resistance : 100M Max at 6VDC 1 A
---Max Switching Current : 500A (Surge @12V Contact Voltage)
---Max Switching Current : 200A (Continuous @12V Contact Voltage)
---Max Switching Power : 6000W (Surge Power)
---Max Switching Power : 2400W (Continuous Power)
---Life Expectancy Electrical : 100,000 Operations (at 30 Operations/minute)
---Life Expectancy Mechanic : 10,000,000
---Operations Size(L*W*H): 7.2cm x 5.5cm x 8.5cm
