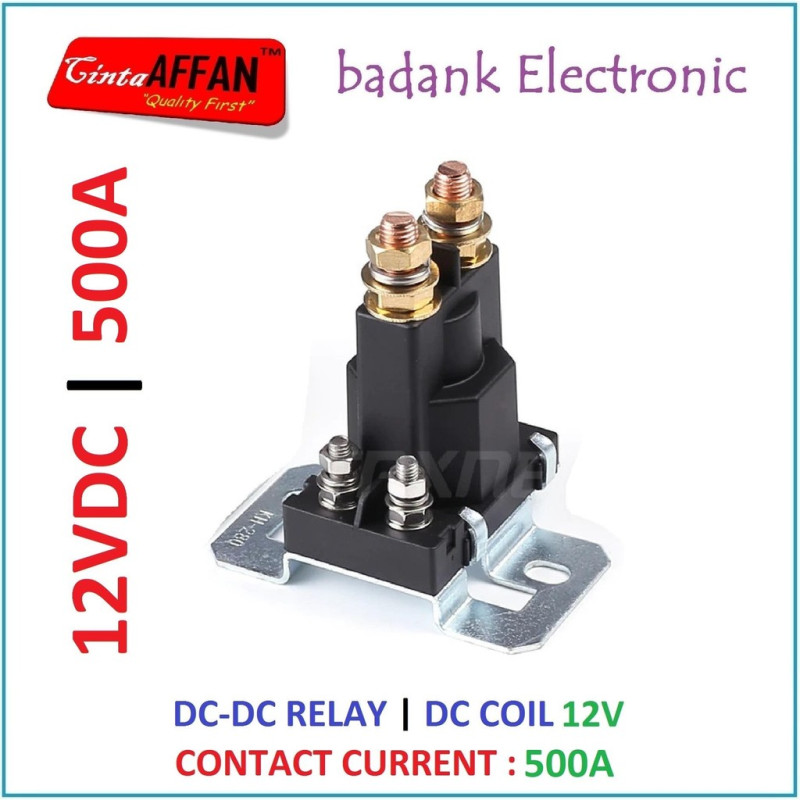

COIL 12V DC-DC Relay 500A Automotive Heavy Duty High Current Starting

Name: COIL 12V DC-DC Relay 500A Automotive Heavy Duty High Current Starting
Brand: badank Electronic
SKU: 2748215028
Price: 208550 IDR
Availability: InStock

Rp215,000

Rp208,550 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

DC-DC RELAY Coil / Control Voltage : 12V

STARTING/SURGE LOAD (5ms):
---Max Contact Current : 500A (@12V Contact Voltage)
---Max Contact Load : 6000W

CONTINOUS LOAD :
---Max Contact Current : 200A (@12V Contact Voltage)
---Max Contact Load : 2400W

Note: The contact current capacity will reduced alongside with the increase of the contact voltage.

@12VDC Contact Voltage --> Max Contact Surge Current is 500A
@24VDC Contact Voltage --> Max Contact Surge Current is 250A
@48VDC Contact Voltage --> Max Contact Surge Current is 125A
@100VDC Contact Voltage --> Max Contact Surge Current is 60A
@200VDC Contact Voltage --> Max Contact Surge Current is 30A

100% brand new and high quality

FEATURES:
Durable amp; Firm amp; Stable
Contact Load: High Power
Sphere of application: solar inverter, construction vehicles, cars, and other large vehicles

SPECIFICATION:

COIL SIDE:
---Nominal Voltage : 12V DC
---Pickup Voltage : 8V DC
---Dropout Voltage: 1.2V DC
---Maximum Voltage : 15.5V DC
---Current Consumption : 0.4A / 4.8W (Max)
---Coil Resistant : 316 Ohms

CONTACT SIDE:
---Contact material : AgSn0_27In_20_33
---Contact form : 1H(1A)
---Contact Ratings : 500A
---Contact Resistance : 100M Max at 6VDC 1 A
---Max Switching Current : 500A (Surge @12V Contact Voltage)
---Max Switching Current : 200A (Continuous @12V Contact Voltage)
---Max Switching Power : 6000W (Surge Power)
---Max Switching Power : 2400W (Continuous Power)
---Life Expectancy Electrical : 100,000 Operations (at 30 Operations/minute)
---Life Expectancy Mechanic : 10,000,000
---Operations Size(L*W*H): 7.2cm x 5.5cm x 8.5cm
