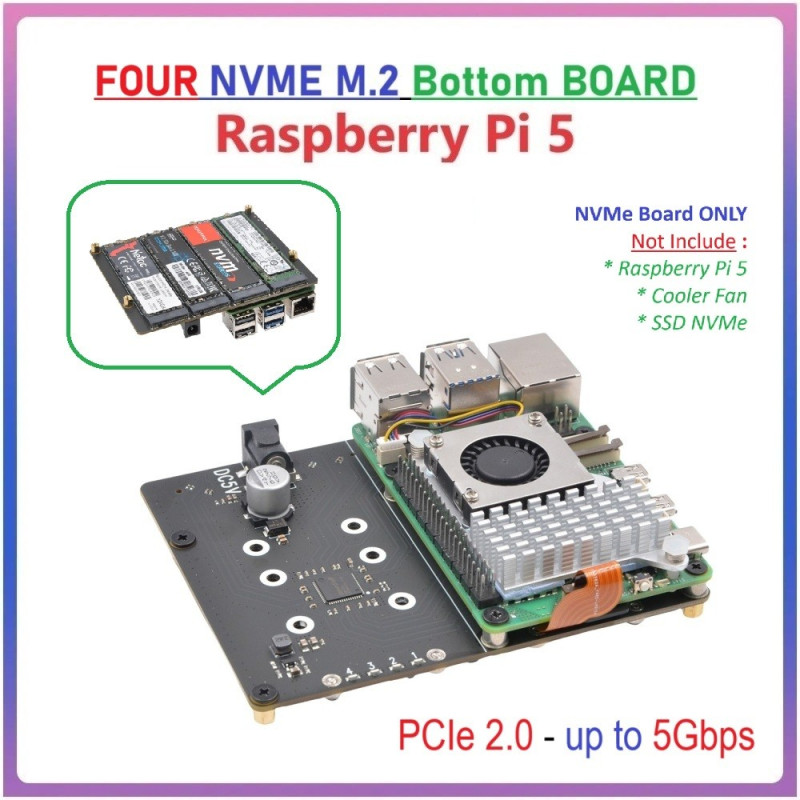

SUPTRONICS X1011 PCIe 2.0 to Quad M.2 NVMe 4 SSD Bottom Shield for Raspberry Pi 5

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

QUAD / FOUR SSD NVME M.2 BOARD / SHIELD / HAT for Raspberry Pi 5
BOTTOM SHIELD

PCIe 2.0 - speed up to 5.0 Gbps

Compatible for :
-- NVME M.2 2230
-- NVME M.2 2242
-- NVME M.2 2260
-- NVME M.2 2280

Order SSD NVME 2280 (sudah terinstall OS Raspberry) :
NVME 128GB :
NVME 256GB :
NVME 512GB :
NVME 1TB :
NVME 2TB :

Order MATCHING Metal Case :

Order Raspberry Pi 5 :
RAM 2GB :
RAM 4GB :
RAM 8GB :
RAM 16GB :

Order KIT NVME :
RPi5 (8GB) NVME 1TB :
RPi5 (8GB) NVME 2TB :

HOW TO POWER :
Power input: 5V 5A, Power from Raspberry Pi5 through pogo pins or onboard DC power jack

OVERVIEW :
The X1011 four M.2 NVMe SSD shield, designed to provide a mass-capacity storage and high-speed storage solution for your Raspberry Pi 5. Its sleek and compact design enables easy attachment of four full-size M.2 2280 SSDs to your Raspberry Pi 5. With its PCIe 2.0 interface, you can experience data transfer rates of up to 5Gbps, allowing you to effortlessly transfer large amounts of data within seconds.

FEATURES :
- The perfect storage solution for your Raspberry Pi 5 - the M.2 NVMe 4 SSD Shield
- Supports a total of 16TB storage capacity (4TB x4) with M.2 NVMe solid-state drives
- Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
- Provides speedy data transfer with PCIe 2.0 5Gbps
- LED indicators in blue display power and drive status
- Features an integrated high-performance PCIe packet switch
- Equipped with high-efficiency DC/DC step-down converter, delivering a maximum of 10A to power your SSDs
- Powering via both pogo pins & FFC or DC power jack, ensuring sufficient power supply without any worries
- Designed to be attached on bottom, allows using your favorite HATs alongside it
- Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down.
- Compatible with the official active cooler without affecting cooling performance

SPECIFICATIONS :
Power supply :
--- 5Vdc +/-5% ≥5A power via FFC & pogo pins
--- 5Vdc +/-5% ≥5A power via DC power jack
Ports & Connectors :
--- DC power jack: 5.5x2.1mm, polarity: center positive (+)
--- PCIe connector x1 - 16-pin pitch0.5mm
--- SSD connectors x4 - M.2 KEY-M 67P
PCIe FFC cable length : 37mm
PCB Size : 109mm x 87.2mm

PACKING LIST :
- X1011 V1.1 M.2 NVMe 4 SSD shield x1
- PCIe FFC 37mm x1
- Screw pack x1
