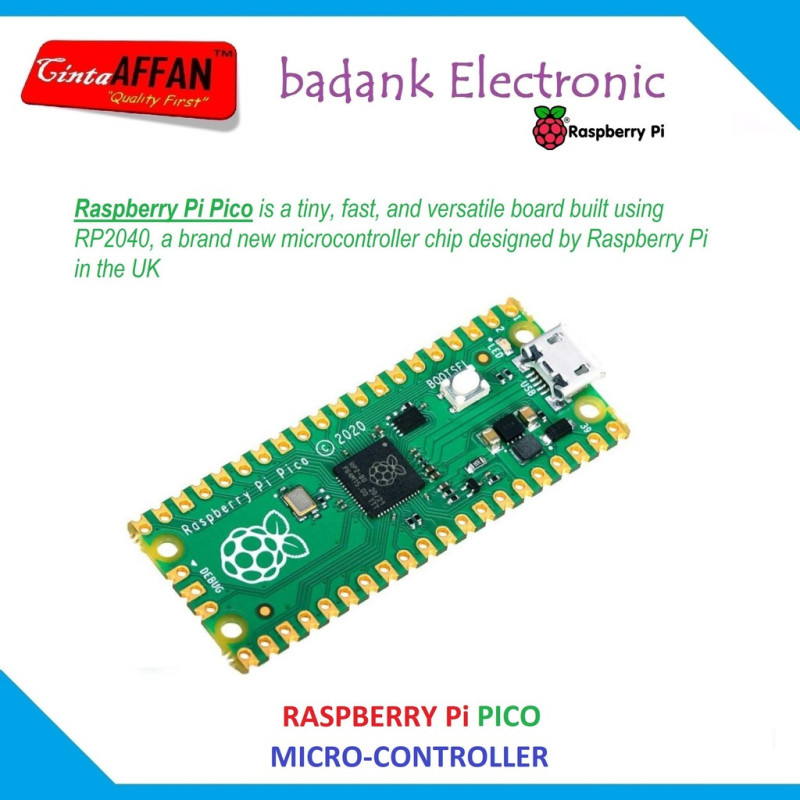

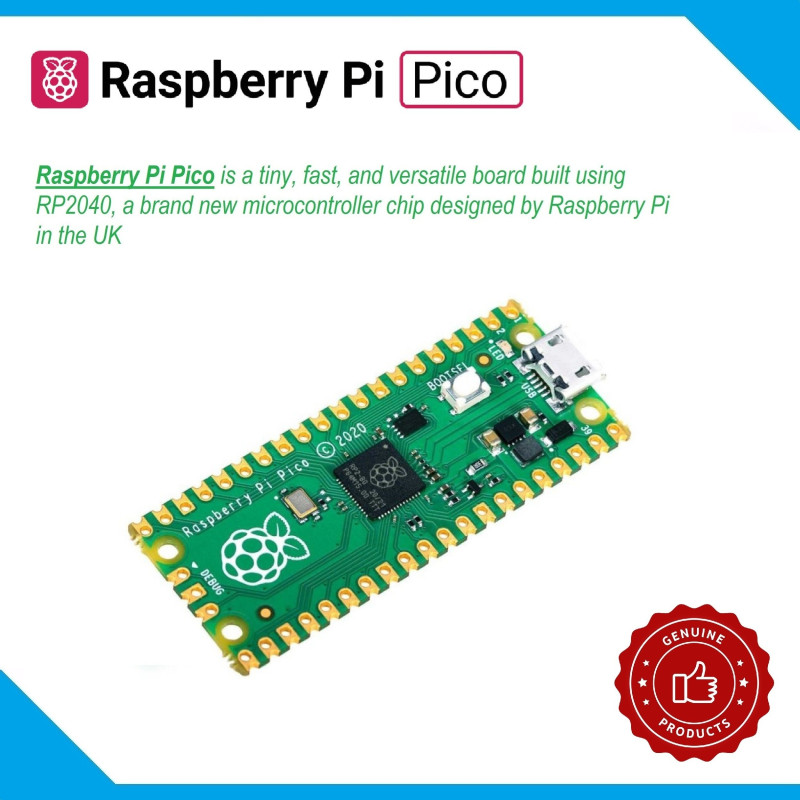

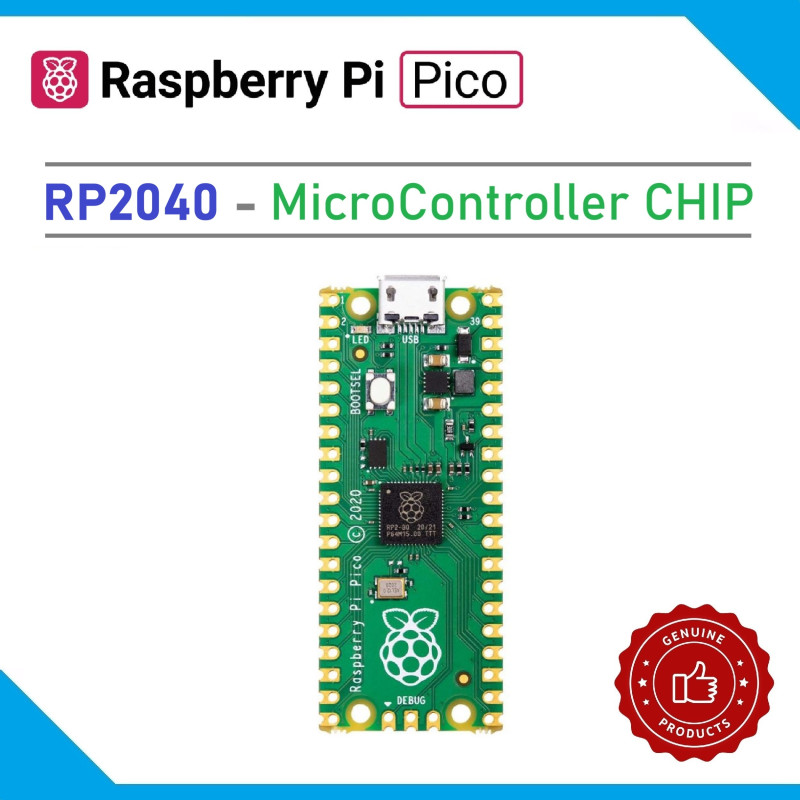

Raspberry Pi PICO with RP2040 Chip
Rp104,000
Rp100,880
Save 3%
Tax excluded
SKU: 787066118
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
RASPBERRY Pi PICO, RP2040 Chip
HARAP DIBACA DAN DIPAHAMI SEBELUM MEMBUAT ORDER
***CATATAN PENTING:
Produk yang kami jual adalah Raspberry Pi Pico standar pabrik, dikirim dalam kondisi kosong tanpa program/firmware. Pembeli perlu melakukan pemrograman sendiri sesuai kebutuhan.
***MENGENAI LED:
LED onboard BUKAN indikator power. Saat Pico dicolokkan ke USB komputer, LED tidak otomatis menyala dan ini NORMAL.
Pico tetap dapat terdeteksi oleh komputer sebagai perangkat USB dengan nama RPI-RP2, terutama saat masuk mode BOOTSEL. LED hanya menyala atau berkedip jika dikendalikan oleh program/firmware.
LED tidak menyala saat USB dicolokkan bukan berarti board rusak.
TECHNICAL SPECIFICATIONS:
* 21 mm × 51 mm form factor
* RP2040 microcontroller chip designed by Raspberry Pi in the UK
* Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
* 264kB on-chip SRAM
* 2MB on-board QSPI flash
* 2.4GHz 802.11n wireless LAN (Raspberry Pi Pico W and WH only)
* Bluetooth 5.2 (Raspberry Pi Pico W and WH only)
* 26 multifunction GPIO pins, including 3 analogue inputs
* 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
* 1 × USB 1.1 controller and PHY, with host and device support
* 8 × Programmable I/O (PIO) state machines for custom peripheral support
* Supported input voltage 1.8–5.5V DC
* Operating temperature -20DegC to +85DegC (Raspberry Pi Pico and Pico H); -20DegC to +70DegC (Raspberry Pi Pico W and Pico WH)
* Castellated module allows soldering direct to carrier boards (Raspberry Pi Pico and Pico W only)
* Drag-and-drop programming using mass storage over USB
* Low-power sleep and dormant modes
* Accurate on-chip clock
* Temperature sensor
* Accelerated integer and floating-point libraries on-chip
787066118
50 g
50 Items
Available Warehouse Stock
Bandung
15
Jakarta
19
Surabaya
16
