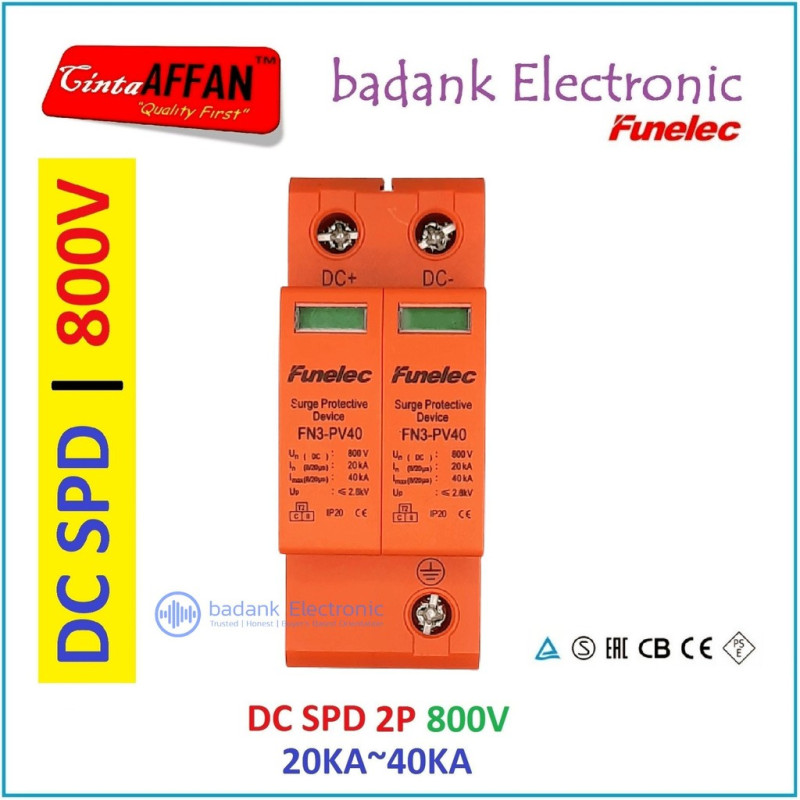

DC SPD 2P 800V Surge Arrester Protect Device Solar PV Panel Surya PLTS
Rp180,000
Rp174,600
Save 3%
Tax excluded
SKU: 639489674
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
BRAND : FUNELEC
Class II, Type T2
DC SPD 2P 800V 20KA~40KA
SURGE PROTECT DEVICE / SURGE ARRESTER
Aplikasi : Sistem Panel Surya, Wind Turbine maupun sistem tegangan DC lainnya.
==
SPECIFICATIONS:
Rated Voltage (Un) : 800V (DC)
Max Continues Voltage (Uc) : 860V (DC)
Nominal Flow Capacity (In) : 20 kA (KA8/20s)
Maximum Flow Capacity (Imax) : 40 kA (KA8/20s)
Protection Level (Up) : 2.8kV (DC)
Response Time : 25 (ns)
Leakage Current 0.75U 1mA : 20 (A)
Working Temperature : -40~+80 (c)
==
