Power Over Ethernet PoE HAT (F) For Raspberry Pi 5 / CM 5 with Onboard Cooling Fan and Metal Heatsink
Rp456,000
Rp442,320
Save 3%
Tax excluded
SKU: 16080450636
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

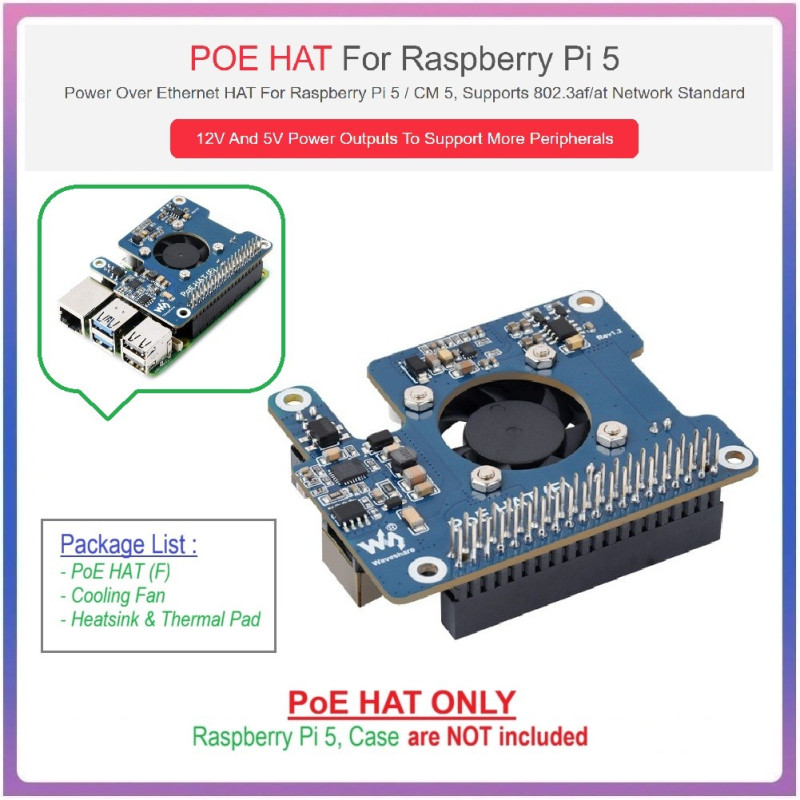

Power Over Ethernet / PoE HAT (F)
For Raspberry Pi 5 / CM 5
12V and 5V Output, Supports 802.3af/at Network Standard
Included in the Package :
- PoE HAT (F) Board
- Cooling Fan (On-board)
- Heatsink and thermal pad
Compatible for Installation with :
- Metal Case P579 Geekworm
Order Raspberry Pi 5 :
RAM 2GB :
RAM 4GB :
RAM 8GB :
RAM 16GB :
Order Metal Case :
FEATURE :
The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory (PoE+) for the Raspberry Pi 5 / CM 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipment, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
-Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 / CM 5
-PoE / PoE+ capability, IEEE 802.3af/at-compliant
-Fully isolated switched-mode power supply (SMPS)
-Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
TECHNICAL SPECIFICATIONS:
Brand : Waveshare
PoE Power Input : 38V - 57V DC in
Power Output :
---GPIO header (5V 4.5A MAX)
---2P header (12V 2A MAX)
Dimensions : 56.5 × 70.0mm
Network standard : IEEE 802.3af/at PoE / PoE+
