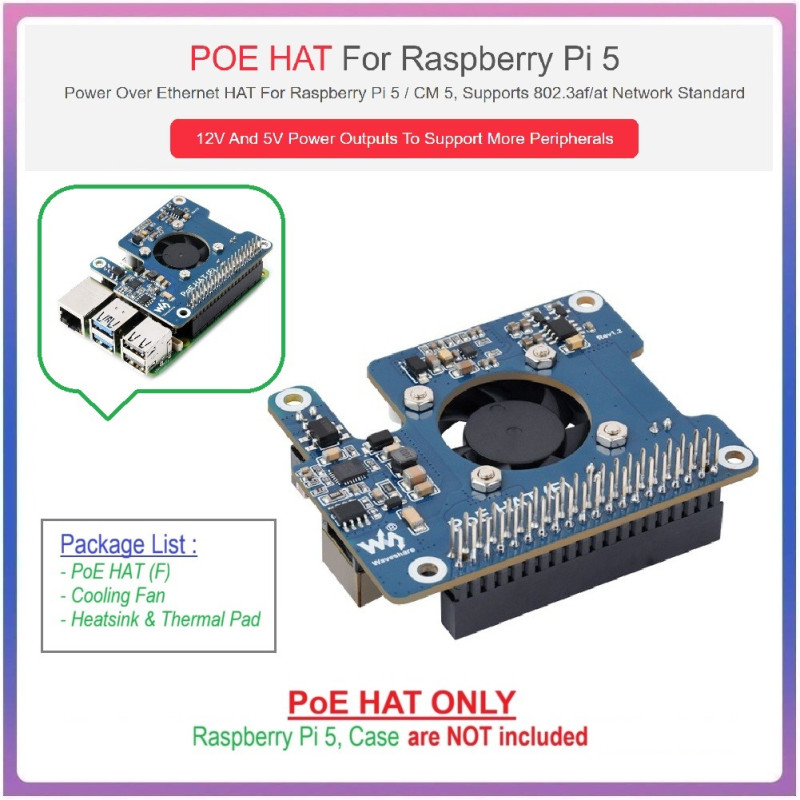

Power Over Ethernet PoE HAT (F) For Raspberry Pi 5 / CM 5 with Onboard Cooling Fan and Metal Heatsink

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

Power Over Ethernet / PoE HAT (F)
For Raspberry Pi 5 / CM 5

12V and 5V Output, Supports 802.3af/at Network Standard

Included in the Package :
- PoE HAT (F) Board
- Cooling Fan (On-board)
- Heatsink and thermal pad

Compatible for Installation with :
- Metal Case P579 Geekworm

Order Raspberry Pi 5 :
RAM 2GB :
RAM 4GB :
RAM 8GB :
RAM 16GB :

Order Metal Case :

FEATURE :

The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory (PoE+) for the Raspberry Pi 5 / CM 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipment, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

-Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 / CM 5
-PoE / PoE+ capability, IEEE 802.3af/at-compliant
-Fully isolated switched-mode power supply (SMPS)
-Onboard high speed active cooling fan, with metal heatsink, better heat dissipation

TECHNICAL SPECIFICATIONS:

Brand : Waveshare
PoE Power Input : 38V - 57V DC in
Power Output :
---GPIO header (5V 4.5A MAX)
---2P header (12V 2A MAX)
Dimensions : 56.5 × 70.0mm
Network standard : IEEE 802.3af/at PoE / PoE+
