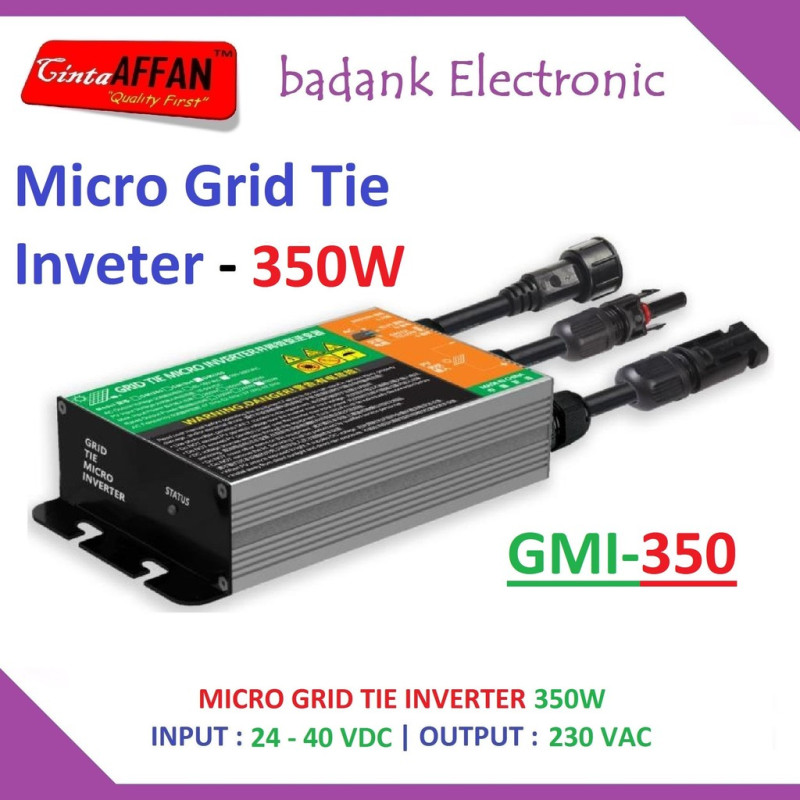

GMI-350 Micro Grid Tie Inverter GTI 350W ON GRID Solar Panel Surya

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

Micro Grid Tie Inverter 350W, MPPT Input Range 24-40VDC Input, ON GRID TIE INVERTER, 230VAC Output, Pure Sine Wave

PANDUAN INSTALASI:
1. Pastikan sambungan sisi DC dan sisi AC terpasang semua sesuai schematic.
2. Pastikan polarity (+) dan (-) dari PV sudah benar (tidak terbalik).
3. Pastikan tegangan PV masuk dalam range teganan input inverter (tidak kurang dan tidak lebih)

SPESIFIKASI:

Model : GMI-350

INPUT DATA (DC, PV)
MPPT Voltage Range : 24V-40V
Operation Voltage Range : 18V-50V
Maximum Input Voltage : 50V
Startup Voltage : 18V
Maximum Input Power : 350W
Maximum Input Current : 14A

OUTPUT DATA (AC)
Single Phase Grid Type : 230V
Rated Output Power : 320W
Maximum Output Power : 350W
Nominal Output Current (230V) : 1.39A
Nominal Output Voltage : 230V
Default Output Voltage Range : 180V-280V
Nominal Output Frequency : 50Hz
Default Output Frequency Range : 47.5Hz - 52.5Hz
Power Factor : >0.99
Total Harmonic Distortion : THD

EFFICIENCY
Peak Efficiency : 92.5%
CEC Weighted Efficiency (230V) : 91.5%
Nominal MPPT Efficiency : 99.9%
Night Power Consumption :

MECHANICL DATA
Operating Ambient Temperature Range : -40degC to +65degC
Storage Temerature Range : -40degC to +65degC
Dimension (W x H x D) : 35mm x 76mm x 233mm
Weight : 0.5kg
Waterproof Grade : IP55
Cooling Mode : Natural Convection - No Fans

OTHER FEATURES
Transformer Design : High Frequency Transformers, Galvanically Isolated
Integrated Ground : Equipment ground is provided by the PE in the AC cable. No additional ground is required
Protection Functions : Temperature Protection, Current Protection
